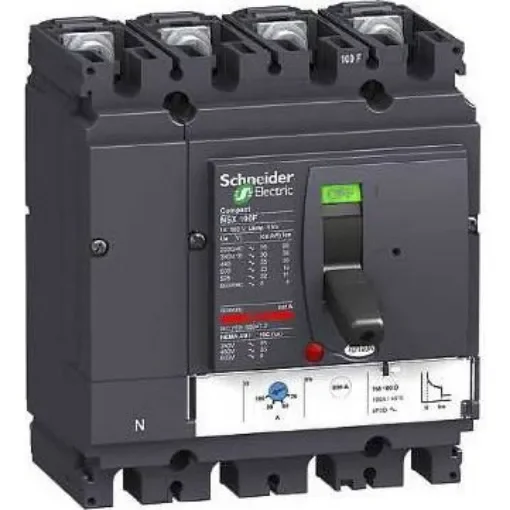

Schneider Electric, NSX Range MCCB 4P 100A, Breaking Capacity 100 kA, Fixed Mount - LV429690
High-performance 4-pole MCCB with 100A rating and 100 kA breaking capacity for reliable circuit protection.
Manufacturer part number: LV429690
GTIN: 3606480009174
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Range = NSX Range
Series = LV4
Number of Poles = 4
Current Rating = 100A
Breaking Capacity at Maximum Voltage Rating = 100 kA
Rated AC Voltage = 690V
Mounting Style = Fixed
Length = 161mm
Width = 140mm
Depth = 86mm
Better World Verification = Green Premium
Tripping Mechanism = Thermal-Magnetic
Schneider Electric Compact NSX100H Circuit Breaker. ComPact NSX are high performing Circuit breakers available in 2 frame sizes with moulded cases (MCCB). The Circuit breakers will meet all needs from thermal magnetic to MicroLogic trip units plus the range features earth leakage protection. The ComPact NSX provide intelligent metering and monitoring with excellent protection function.
