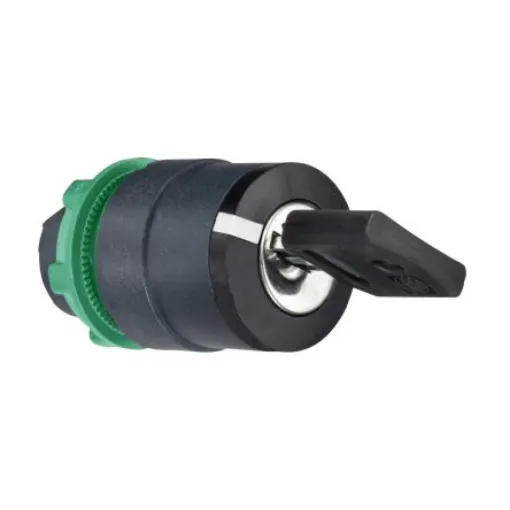

Schneider Electric Harmony XB5 3-position Key Switch Head, Latching, 22mm Cutout - ZB5AG5

Series = Harmony XB5
Cutout Diameter = 22mm
Number of Positions = 3
Key Type = 455
Key Withdrawal Position = Left + Right
IP Rating = IP66, IP67, IP69(IP69K)
Angle of Throw = 45°
Illuminated = No
Number of Keys = 2
Maximum Operating Temperature = +70°C
Mechanical Life = 1000000
Better World Product = Yes°C

IEC, JIS. UL, CSA. Key Switch. Schneider key switches are manually operated by turning a key. Various switch versions are available enabling the operator to gain a clear visual indication of the switched position and the commands required for the electrical control of equipment. Keys can be removed or may "stay-put" in different positions (switch type dependent). Please refer to the manufacturers datasheet for specific details. Some models have spring return features, that enables the key to activate the switch, then return to the original 'home' key position.
