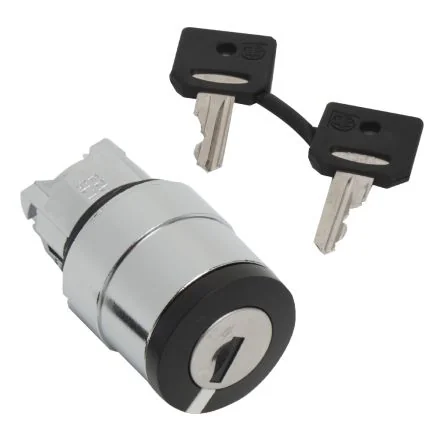

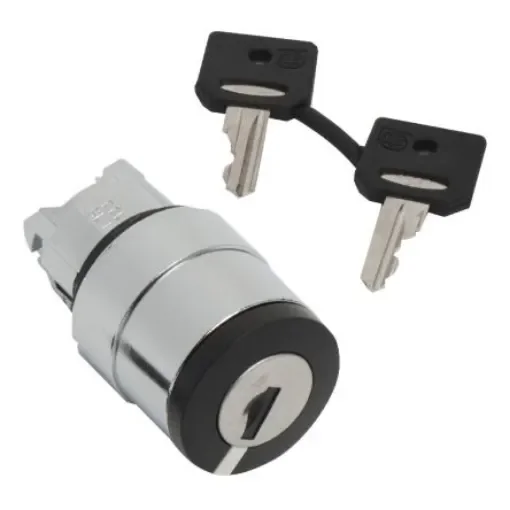

Schneider Electric Harmony XB4 2-position Key Switch Head, Latching, 22mm Cutout - ZB4BG414

Series = Harmony XB4
Cutout Diameter = 22mm
Number of Positions = 2
Key Type = 520E
Key Withdrawal Position = All
IP Rating = IP66, IP67, IP69(IP69K)
Angle of Throw = 90°
Illuminated = No
Number of Keys = 2
Maximum Operating Temperature = +70°C
Mechanical Life = 1000000
Better World Product = Yes°C

Schneider Electric Selector Harmony ZB4 Key Switch Heads for use with XB4 Switches. Featuring black handles and a range of positions, Schneider Electric offers the Harmony ZB4 series of key switch heads. Round and chrome plated metal, they are designed to be durable, simple to set up, flexible and robust. Each switch head contains an ingenious locking system which is a snap-fit head and body, the heads can be tightened with a single screw to ensure secure and simple mounting. We have a large range of Harmony ZB4 key switch heads available in our catalogue with different positions and operator type to suit your needs. All heads require a body/fixing collar and contact bodies which are available from our catalogue of products: Collar ; 331-0142 331-0142 Contact bodies ; 331-0158 331-0158. Features and Benefits:. Low-load electrical contact Screw clamp connection, pins for printed circuit Ingenious locking system Flexible and robust -40°C to 70°C operating temperature. Protection ratings ; Safety features:. Conformity with IEC, UL, CSA standards IP67, IP66 conforming to IEC 60529, IP69 and IP69K NEMA 13 and NEMA 4X IK06 conforming to IEC 50102. Applications - Designed for industry, infrastructure and service sector use including: Automotive Control system panel builders Energy distribution Public works Building Airports
