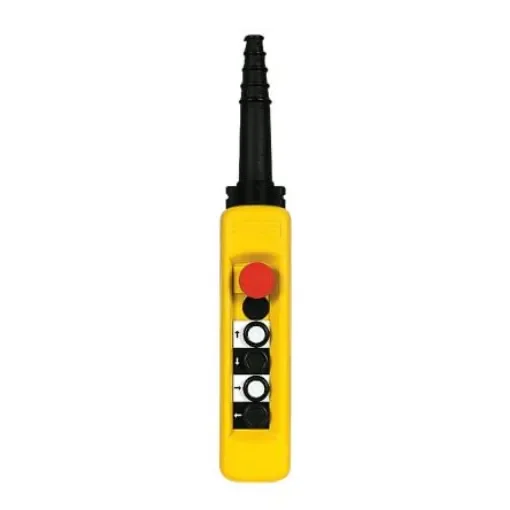

Schneider Electric 4 CO Push Button Pendant Station, 10A - XACA4713

Contact Configuration = 4 CO
IP Rating = IP65
Contact Current Rating = 10A
Terminal Type = Screw
Minimum Operating Temperature = -25°C
Maximum Operating Temperature = +70°C
Contact Material = Polypropylene
Enclosure Colour = Yellow
Number Of Push Buttons = 5
Push Button Marking = Down Arrow, E-Stop, Left Arrow, Up Arrow
Better World Product = Yes
Voltage Rating = 600V

Schneider Electric Push Button Pendant Station - XACA4713 Forming part of Schneider Electrics Harmony XAC range, this pendant features four push-buttons and one emergency stop button. Features & Benefits The control button type of the buttons are - third pushbutton 1 NO right - slow, stop pushbutton Ø 40 mm 1 NC - latching, second pushbutton 1 NO lower -slow, fourth pushbutton 1 NO left - slow and first pushbutton 1 NO raise - slow With mechanical interlocking Aesthetically pleasing, finished with bright yellow colour, making it easy to locate Mechanically durable up to 1000000 cycles The cable entry has a rubber sleeve with stepped entry, the cable outer diameter is 0.31..1.02 in (8..26 mm) This pendant control station has a conventional enclosed thermal current of 10A The unit features an ingress protection rating of IP65, this means that the pendant control station is rated as dust tight and is protected against water projected from a nozzle Shock-resistant of 100gn conforming to EIC 60068-2-27 Features a rated insulation voltage of 600V (degree of pollution:3) which conforms to IEC 60947-1 The rated impulse withstand voltage is 6 kV which conforms to IEC 60947-1
