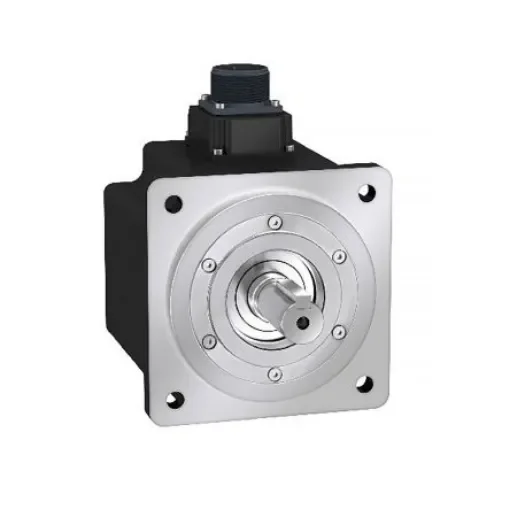

Schneider Electric 220 V dc 1.5 kW Servo Motor, 3000 rpm, 14.3 Nm Max Output Torque, 22mm Shaft Diameter - BCH2MM1523CA6C

Maximum Output Torque = 14.3 Nm
Supply Voltage = 220 V dc
Output Speed = 3000 rpm
Power Rating = 1.5 kW
Stall Torque = 7.16Nm
Shaft Diameter = 22mm
Length = 222mm
Width = 130mm
Depth = 176mm
Current Rating = 20.31 A rms
Series = BCH2
Rotor Inertia = 9.7kg.cm²
Better World Verification = Green Premium

BCH2 Servo Motors. Schneider Electric BCH2 Servo Motors are synchronous AC servo motors that are ideal for high performance applications. Equipped with high resolution (20-bit) single-turn absolute encoder as standard. Available in a range of flange sizes Equipped with an absolute encoder Three available types of motor inertia
