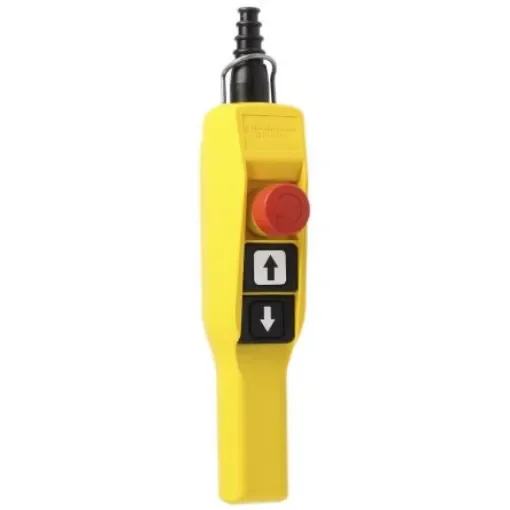

Schneider Electric 2 NO + 3 NC Slow Brake Push Button Pendant Station - XACA2153

Schneider Electric Push Button Pendant Station - XACA2153 Forming part of the harmony XAC series, this pistol grip pendant station is brought to you complete and ready use - no need to set up. The pendant features two booted push buttons and one emergency stop button. Features & Benefits The control button type of the buttons are - Stop push-button Ø 30 mm 1 NC latching, first push-button 1 NC + 1 NC latching and the second push-button is 1 NC + 1 NO lower. slow With mechanical interlocking Aesthetically pleasing, finished with bright yellow colour, making it easy to locate Mechanically durable up to 1000000 cycles The cable entry has a rubber sleeve with stepped entry, the cable outer diameter is 7..15mm This pendant control station has a conventional enclosed thermal current of 10A The unit features an ingress protection rating of IP65, this means that the pendant control station is rated as dust tight and is protected against water projected from a nozzle Shock-resistant of 100gn conforming to EIC 60068-2-27 Features and rated insulation voltage of 600V (degree of pollution:3) which conforms to IEC 60947-1 The rated impulse withstand voltage is 6 kV which conforms to IEC 60947-1
