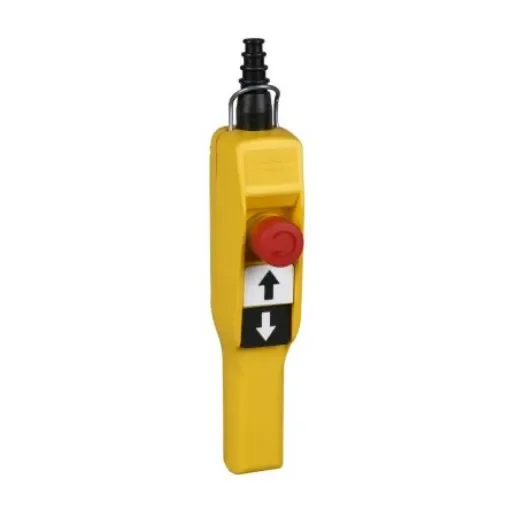

Schneider Electric 1NC + 2 NO Slow Brake Push Button Pendant Station, 10A - XACA2013

Contact Configuration = 1NC + 2 NO
Switch Operation = Slow Brake
IP Rating = IP65
Contact Current Rating = 10A
Terminal Type = Screw
Contact Resistance = 25mO
Minimum Operating Temperature = -25°C
Maximum Operating Temperature = +70°C
Enclosure Colour = Yellow
Number Of Push Buttons = 3
Push Button Marking = Down Arrow, E-Stop, Up Arrow
Better World Product = Yes
Voltage Rating = 600V

Schneider Electric Pistol Grip Push Button Pendant Station -XACA2013 Forming part of the harmony XAC series, this pistol grip pendant station is brought to you complete and ready use - no need to set up. The pendant features one emergency stop button and two push buttons. Features & Benefits First pushbutton 1 NO raise, slow, second pushbutton 1 NO lower, slow and stop pushbutton Ø 30 mm 1 NC, latching With mechanical interlocking Aesthetically pleasing, finished with bright yellow colour, making it easy to locate Mechanically durable up to 1000000 cycles The cable entry has a rubber sleeve with stepped entry, the cable outer diameter is 7..15mm This pendant control station has a conventional enclosed thermal current of 10A Standards - CSA C22-2, No 14 EN/IEC, 60204-32 EN/IEC and 60947-5-1 UL 508 Certifications - CSA, UL The unit features an ingress protection rating of IP65, this means that the pendant control station is rated as dust tight and is protected against water projected from a nozzle Shock-resistant of 100gn conforming to EIC 60068-2-27 Features and rated insulation voltage of 600V (degree of pollution:3) which conforms to IEC 60947-1 The rated impulse withstand voltage is 6 kV which conforms to IEC 60947-1
