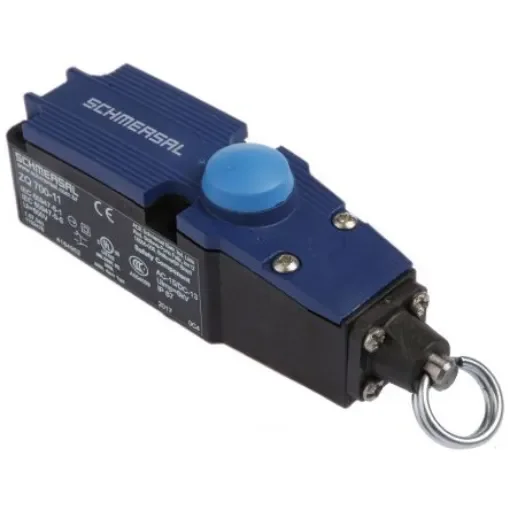

Schmersal ZQ700 Rope Pull Switch, 10m, NO/NC, Straight - ZQ 700-11

Normal State Configuration = NO/NC
Cable Length = 10m
Mounting Orientation = Straight
IP Rating = IP67
Number of Poles = DP
Series = ZQ700
Length = 160mm
Width = 40.5mm
Depth = 50.9mm
Housing Material = Thermoplastic
Minimum Operating Temperature = -25°C

Schmersal Rope Pull SwitchThe Schmersal ZQ700 series rope pull-wire emergency stop switch has a 1NO/1NC contact configuration. It has thermoplastic housing and a straight mount orientation. This switch has a rope span of 10m and an electrical current rating of 4A at a voltage rating of 230VAC.Features and BenefitsSize of cable entry is M20 x 1.5 Release pushbutton Position indicator Large wiring compartment Twisting of towing eye not possible Wire pull and breakage detection One tension force for cable lengths up to 10mCertificationsEN ISO 13849-1 IP67 rated
