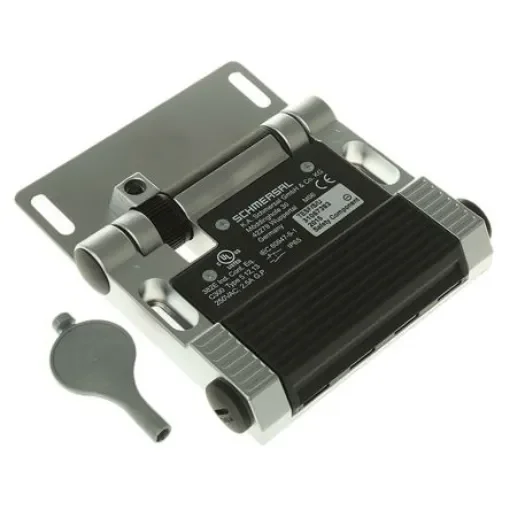

Schmersal TVS 410 Hinge Switch, 2NO/2NC - TVS 410SK-11/11U

Series = TVS 410
Lock Style = Hinge
Normal State Configuration = 2NO/2NC
Maximum AC Voltage = 230V
Maximum DC Voltage = 24V

Schmersal Safety Hinge SwitchThe Schmersal TVS410 series safety hinge switch has a 2NO/2NC normal state configuration. The conduit entry is M16 and size of cable entries is M16x1.5. It has a contact current rating of 4A at a voltage rating of 230VAC and 24VDC. Note: Stock nos. 623-3284 and 623-3278 are not supplied with a power lead. Standard hinge sold separately see stock no. 623-3290Features and Benefits180° opening angle, with adjustable switching angle (K410 tool included with switch) Positive break angle between 5° and 8° Matching (non-safety) hinge available Metal enclosure is oil and petroleum resistant Adjustable switching angle Opening angle is 180° For left or right hinged doors Mountable on the inside and the outside of the safety guard Screw terminals, cage clamps or connectorApplicationsPacking machines Printing and paper machines Tool machines Metal industry Electrical industry Special machine construction Measurement technology, process engineering, testing and laboratory equipment Plastics processing machinery Enclosures/profile systems Food processing machineryCertificationsIEC/EN60947-5-1 BG-GS-ET-15 BG certified IP65 rated CE certified cULus approved CCC certified
