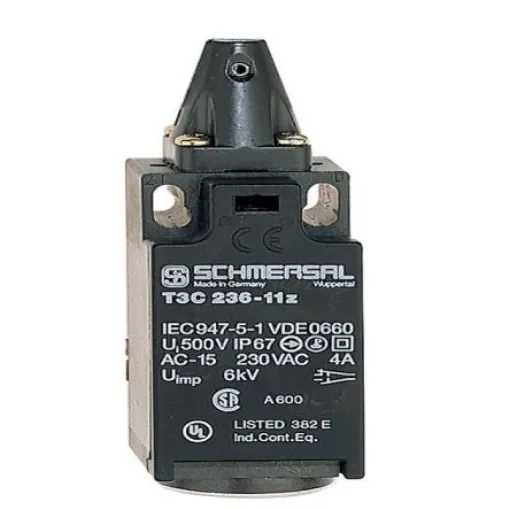

Schmersal TC 236 Safety Hinge Switch, NO/NC - T3C 236-11Z
Ensure safety with the Schmersal Safety Hinge Switch, designed for reliable operation in hinged guards.
Manufacturer part number: T3C 236-11Z
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
IEC947-5-1/EN60947-5-1/DIN VDE 0660 Part 200; BG-GS-ET-15; DIN EN 50047; BS5304. It is important to select the correct lever model dependent upon the position of the hinge on the guard. T.C 236, Hinge Slider. These switches are designed for hinged guards and have a built-in actuator lever which operates the contact block with a positive mechanical linkage N/C safety contact positively disconnected after just 4.5° rotation Head can be turned in any one of four 90° positions Slow action contact system The housing with snap-on cover fastened without screws to facilitate easy connection
