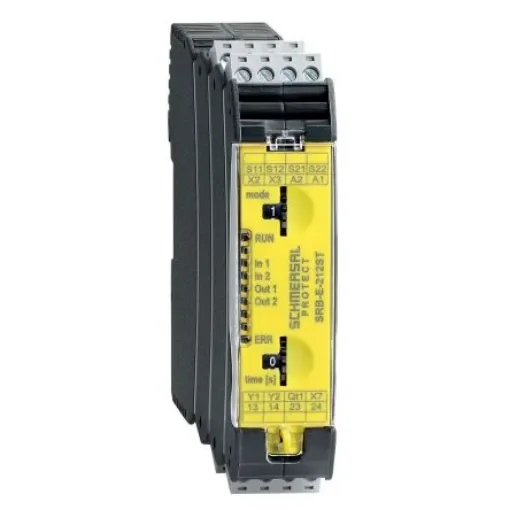

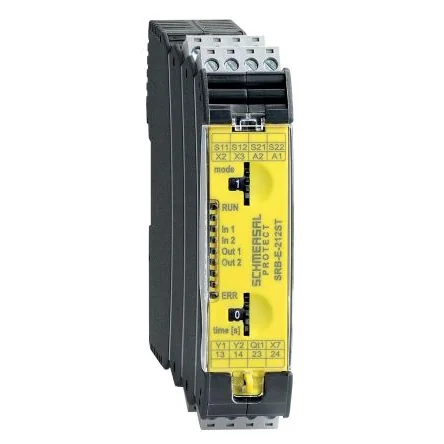

Schmersal SRB E 232ST Emergency Stop Safety Relay, 24V dc, Dual-Channel, 3 Safety Contacts - 103014308
Ensure safety with the Schmersal Emergency Stop Safety Relay, featuring dual-channel operation and robust design.
Manufacturer part number: 103014308
Supply Voltage = 24V dc
Number of Channels = 2
Safety Contacts = 3
Function = Emergency Stop
Auxiliary Contacts = 1
Range = SRB E, Multi-function
Depth = 115mm
Length = 98mm
The Schmersal SRB-E-232ST safety-monitoring module has a glass-fibred reinforced thermoplastic, ventilated enclosure material. The material of the electrical contacts is Ag-Ni, self-cleaning, positive drive. It snaps onto standard DIN rail to EN 60715. It has screw connection, plug-in terminal connector which is rigid or flexible.STOP 0 / 1 Function 2 Safety outputs STOP 0 Drop-out delay 0 … 30 1 order 2-channel control 3 safety contacts STOP 1 Standards: IEC 61508, IEC/EN 60204-1, ISO 13849-1, EN 60947-5-1, IEC/EN 62061, ISO 13849-1
