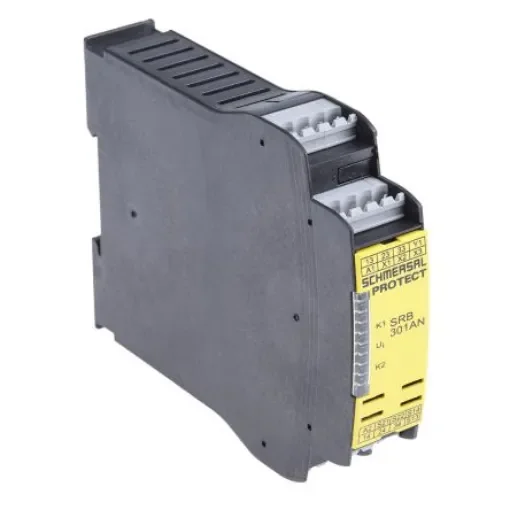

Schmersal PROTECT SRB SRB 301AN Emergency Stop Safety Relay, 24V ac/dc, Single/Dual-Channel, 4 Safety Contacts - SRB301AN 24VAC/DC

Supply Voltage = 24V ac/dc
Number of Channels = 1, 2
Safety Contacts = 4
Function = Emergency Stop
Auxiliary Contacts = 1
Reset Method = Automatic
Range = PROTECT SRB
Safety Category ISO 13849-1 = 4
PL ISO 13849-1 = e
SIL IEC 61508 = 3
Terminal Type = Screw
Standards Met = IEC60947-1
Width = 22.5mm
Performance Level = emm

BG, USA/CAN. PROTECT SRB301 Series Safety Relays. Introducing the PROTECT SRB301 series of Safety Relays. These are a perfect fit for signal evaluation, specifically the outputs of safety magnetic switches. They function well with such safety applications like Light beams/curtains, Safety mats or Safety switches/interlocks.
