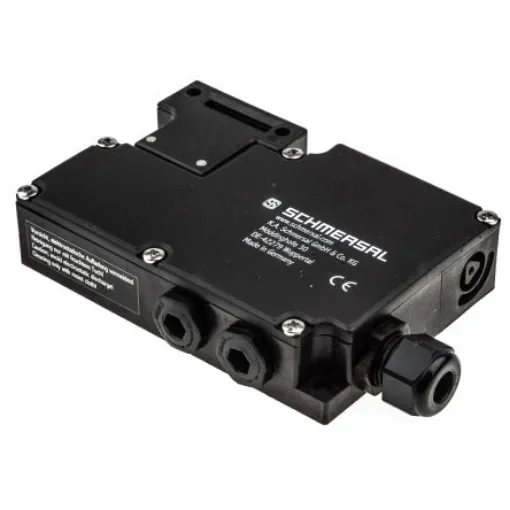

Schmersal EX-AZM 161 Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc - EX-AZM 161SK-12/12RK-024-3D

Schmersal Solenoid Interlock SwitchThe Schmersal EX-AZM161 series power to unlock solenoid interlock switch has a supply voltage rating of 24VAC/DC. It has 2NC/2NO safety and 1NC/1NO auxiliary contacts. It will ensure that sliding, hinged and removable guarding devices cannot be opened until hazardous situations have come to an end. It is also used for cases in which the opening of a guarding device represents a non-permissible intrusion in a production process. The switching element with interlock on the switch is not physically connected to the actuator but functionally brought together or separated on switching. When the guard device is opened in the interlocked condition, the actuator is separated from the base unit. In this process, NC contacts are positively opened and NO contacts closed. Interlocking is carried using latching bolt which blocks the actuator so that it cannot be withdrawn from the interlock. The machine control circuit is only enabled when the actuator is fed into the interlock and the latching bolt is in the blocking position. Note: Actuators must be ordered separately.Features and BenefitsScrew connection Large wiring compartment Clamping force of 2000N Manual release Interlock with protection against incorrect locking High holding force Long life Double insulated 4 cable entries of M 16 x 1.5CertificationsIP67 rated CE certified Ex certified EN 60079-0 EN 60079-31 EN 60947-5-1 BG-GS-ET-19 ATEX certified
