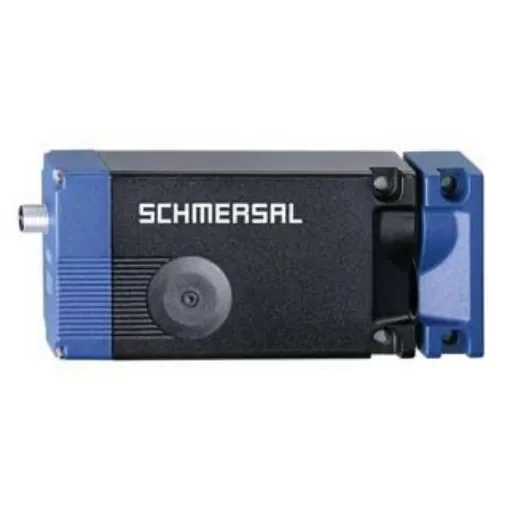

Schmersal AZM400Z Series RFID Solenoid Interlock Switch, 24V dc, Die Cast Alloy Housing, 2NO, M12 - AZM400Z-ST-1P2P

Supply Voltage = 24V dc
Safety Contacts = 2NO
Housing Material = Die Cast Alloy
Connection Type = M12
Safety Category = 4
Actuator Included = No
Series = AZM400Zmm
IP Rating = IP66, IP67
Supply Current = 100mA
Length = 166.7mm

Schmersal Solenoid InterlockThe Schmersal AZM400Z series solenoid interlock has a switching distance of 30mm. It is an electronic safety sensor with unique diagnosis meets the highest safety requirements, even when series-wired. This solenoid also features universal coding functions for the uniform allocation of the actuator to the sensor and this is realised through integrated RFID technology.Features and BenefitsBi-stable Motor-driven system Clamping force is 10.000N Release possible against lateral forces up to 300N Two-channel input signal of the guard locking function Operation on P/P- and P/N-switching outputs High tolerance to door misalignment Connector M12, 8-pole Guard locking monitored 1 diagnostic output Manual releaseCertificationsCE certified UL approved EAC certified TUV approved ISO 13849-1 IEC 61508
