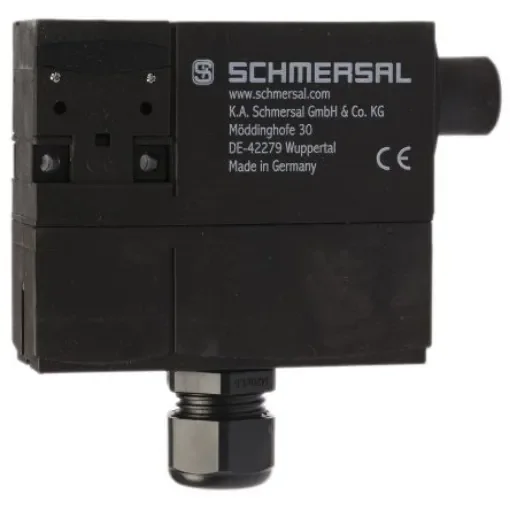

Schmersal AZM 170 Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, 3NC - AZM 170SK-11/02ZRK-2197 24VAC/DC

Power to Lock / Unlock = Power to Unlock
Supply Voltage = 24V ac/dc
Series = AZM 170
Actuator Included = No
Safety Contacts = 3NC
Normal State Configuration = 3NC
Auxiliary Contacts = 1NO
Housing Material = Plastic
IP Rating = IP67
Maximum AC Voltage = 24V ac
Length = 30mm

Schmersal Solenoid Interlock SwitchThe Schmersal AZM170 series power to unlock solenoid interlock switch has power supply voltage rating of 24VAC/DC with 2NC safety contact configuration. It offers robust guard door protection in many applications. This interlock switch is made of double-insulated thermoplastic enclosures to withstand industrial environments. Note: Actuator is not supplied.Features and BenefitsCable entry of 1M20 x 1.5 Electromechanical actuation type Plastic, glass-fibre reinforced thermoplastic Self-extinguishing body material Operating temperature ranging between -25°C and 60°C Interlock with protection against incorrect locking Long life High holding force screw connection Manual release Compact designCertificationsIP67 rated EN ISO 13849-1 EN 60947-5-1 BG-GS-ET-19 BG certified CCC certified UL listed
