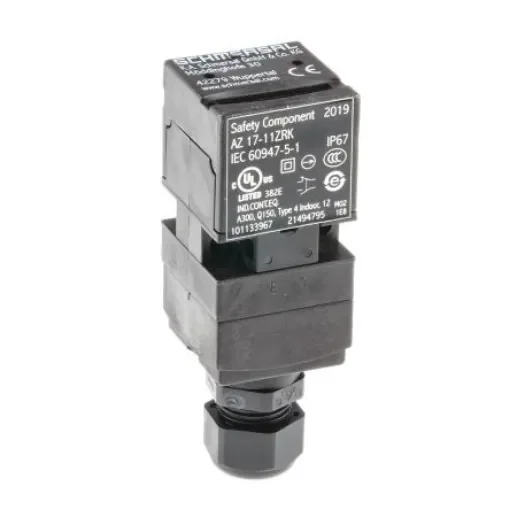

Schmersal AZ17 Safety Interlock Switch, 1NC/1NO, Keyed, Glass Fibre Reinforced Thermoplastic - AZ 17-11ZRK

Lock Style = Keyed
Normal State Configuration = 1NC/1NO
Safety Contacts = NC
Maximum AC Voltage = 230V
Maximum DC Voltage = 24V
Connection Type = M16
Housing Material = Glass Fibre Reinforced Thermoplastic
IP Rating = IP67
Number of Head Directions = 4
Series = AZ17mm
Maximum Current = 4A

Schmersal Safety Interlock SwitchThe Schmersal AZ17 series, standard, simple, machine guard safety interlock switch has 1NO/1NC contacts. Its housing has 4 entry points: 1 on the front, 1 in the rear, and 2 on the top. The housing material is glass fibre reinforced thermoplastic. It has a maximum voltage rating of 230VAC/24VDC and a maximum current rating of 4A.Features and BenefitsIndividual coding available on request Long life Double insulated 3 cable entries M20 x 1.5 Large wiring compartment High level of contact reliability with low voltages and currents Not sensitive to dirty conditions by virtue of patented roller system Slotted holes for adjustment, circular holes for locationCertificationsIEC/EN60947-5-1 BG-GS-ET-15 IP67 rated BG certified UL listed CSA certified EAC certified CCC certified
