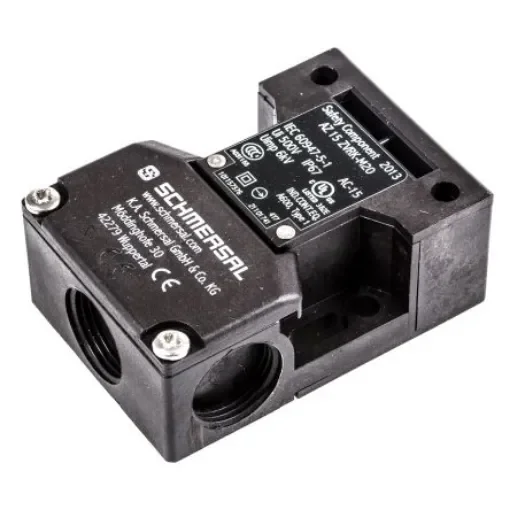

Schmersal AZ15 Safety Interlock Switch, 1NC, Keyed, Glass Fibre Reinforced Thermoplastic - AZ15ZVRK-M20

Lock Style = Keyed
Normal State Configuration = 1NC
Safety Contacts = NC
Maximum AC Voltage = 230V
Maximum DC Voltage = 24V
Connection Type = M20
Housing Material = Glass Fibre Reinforced Thermoplastic
IP Rating = IP67
Number of Head Directions = 3
Series = AZ15
Depth = 75mm

Schmersal Safety SwitchThe Schmersal AZ15 series safety switch has 1NC contact configuration. It is a standard, simple machine guard safety switch. Its housing has 4 entry points front, rear and 2 on the top. It is made of glass fibre reinforced thermoplastic. This safety switch has a maximum voltage rating of 230VAC/24VDC and a maximum current rating of 4A.Features and BenefitsIndividual coding available on request Long life Double insulated 3 cable entries M20 x 1.5 Large wiring compartment High level of contact reliability with low voltages and currents Not sensitive to dirty conditions by virtue of patented roller system Slotted holes for adjustment, circular holes for locationCertificationsIEC/EN60947-5-1 BG-GS-ET-15 IP67 rated BG certified UL listed CSA certified EAC certified CCC certified
