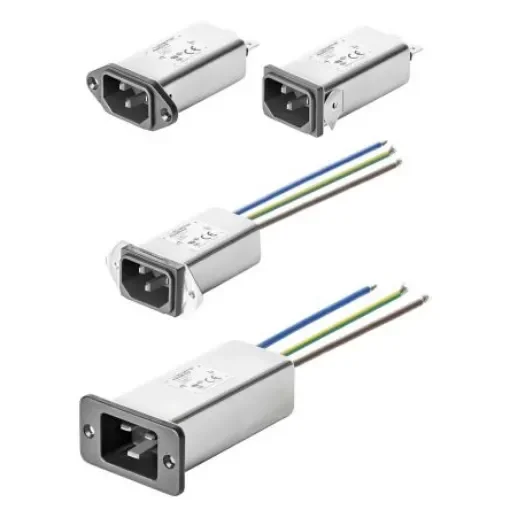

Schaffner 20A, 250 V ac Male Front Mount IEC Inlet Filter 2 Pole FN9255-20-07, Wire Leads

Gender = Male
Switch Type = 2 Pole
Termination Method = Wire Leads
Current Rating = 20A
Voltage Rating = 250 V ac
Mounting Type = Front Mount
Operating Frequency = 400Hz
IEC Connector Type = C20
Width = 53mm
Depth = 99.9mm
Dimensions = 53 x 99.9 x 30mm

The FN9255 IEC inlet filter incorporates a dual stage filter into an IEC inlet that offers excellent filter attenuation in a compact housing. Using an IEC inlet, at the point of entry offers an optimized position and practical solution for integrating an EMC filter into any system. A wide selection of current ratings, output connections and mounting possibilities are available.Exceptional attenuation performance from 150kHz to 300MHz due to dual-stage design High saturation resistance and excellent thermal behavior Rear and Front flange or snap-in mounting options Typical applications Medical devices (MDD) In-vitro diagnostic medical devices (IVDD) Computing & accessories LCD and OLED Displays Test and measurement equipment Household and similar products Portable electrical and electronic equipment Small to medium-sized machines Single-phase power supplies, switch-mode power supplies (SMPS)
