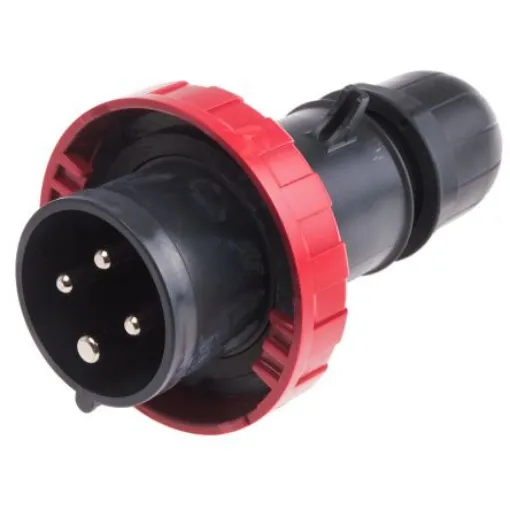

Scame IP66 Red Cable Mount 3P + E Industrial Power Plug, Rated At 16A, 415 V - 218.EX1636
Durable Scame IP66 Red Industrial Power Plug rated at 16A for safe use in harsh environments.
Manufacturer part number: 218.EX1636
GTIN: 5056112146544
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Current Rating = 16A
Plug/Socket = Plug
Pole Format = 3P + E
Voltage Rating = 415 V
Mounting Type = Cable Mount
Gender = Male
Body Orientation = Straight
Termination Method = Screw
IP Rating = IP66
Colour = Red
Minimum Operating Temperature = -25°C
For typical mating sockets see typically: ; 780-0747 780-0747 , ; 780-0762 780-0762 , ; 780-0778 780-0778. ATEX Industrial Power Cable Mount Connector Plugs. A comprehensive range of ATEX directive rated industrial cable mount plugs in 16A, 32A and 63A current ratings, these hardwearing and durable industrial connector plugs are very quick to wire and assemble, with halogen free polymer and nickel plated screw terminal contacts. These ATEX rated connector plugs are IP66 rated with very secure cable glands they are suitable for use within very harsh environments with a high risk of explosions, used in conjunction with the ATEX switched interlocked power outlet sockets also available in this range. IP66 rated Ambient temperature -25 to +60 degrees C Glow wire test 850/960 deg C Self extinguishing UL94 5VA Insulating voltage 500/690V
