Sauter TC 1250-0.1 FN Thickness Meter, 100µm - 1250µm, ±2.5 µm Accuracy, 0.1 µm Resolution, Digital Display - TC 1250-0.1FN

Resolution = 0.1 µm
Accuracy = ±2.5 µm
Display Type = Digital
Dimensions = 131 x 65 x 28mm
Battery Type = AAA
Height = 28mm
Length = 131mm
Maximum Measurement = 1250µm
Width = 65mm

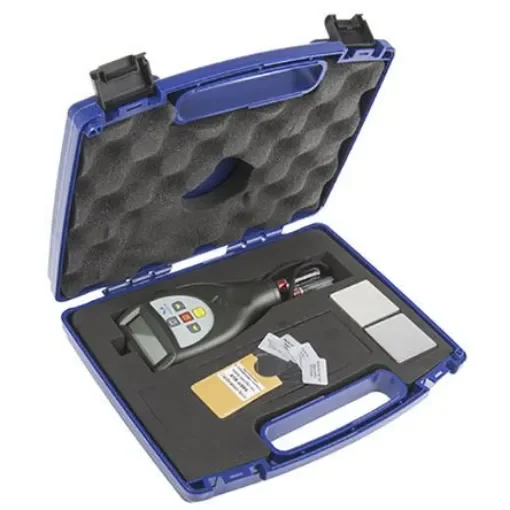

Sauter Thickness GaugeThe Sauter thickness gauge has a maximum measuring range of 1250µm. It is small, light in weight and easy to carry. It has sensors that can measure the thickness of non-magnetic coatings and also a non-magnetic coating on non-magnetic metals. It is suitable for laboratory as well as for use under harsh field conditions.Features and BenefitsAccuracy is 2.5um Resolution is 0.1um Digital display type Ergonomic design for easy handling Data interface (RS-232) included Base plate and calibration foils included Delivered in a hard carrying case Offset-Occur function allows you to adjust the instrument precisely on the locally measured range by a 2-point calibration method Superior accuracy of approximately 1% of the measured value Selectable measuring units like µm, inch (mil)ApplicationsConstruction engineering Paint shops Renovation and restoration projects AutomotiveCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
