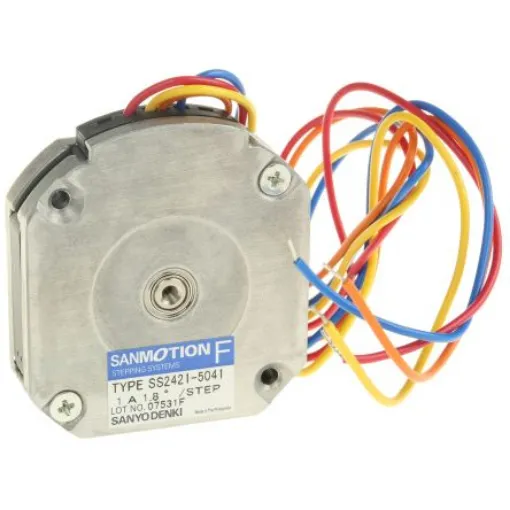

Sanyo Denki SS24 Series Hybrid, Single Shaft Stepper Motor, 83mNm Torque, 24 V, 1.8°, 42 x 42mm Frame, 5mm Shaft - SS2421-5041
Compact and powerful hybrid stepper motor with 83mNm torque for space-restrictive applications.
Manufacturer part number: SS2421-5041
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Stepper Motor Type = Hybrid, Single Shaft
Step Angle = 1.8°
Holding Torque = 83mNm
Number Of Wires = 4
Supply Voltage = 24 V
Frame Size = 42 x 42mm
Shaft Diameter = 5mm
Current Rating = 1 A
Winding Arrangement = Bipolar
Shaft Length = 7mm
Depth = 11.6mm
Resistance Per Phase = 3.5O
Standards Met = CE, UL, TUV, RoHS Compliant
Sanyo Denki Pancake Bipolar Stepper Motor. Sanyo Denki Sanmotion bipolar pancake stepper motors provide the user with a powerful motor option for space-restrictive applications. Lead wire bipolar winding construction
