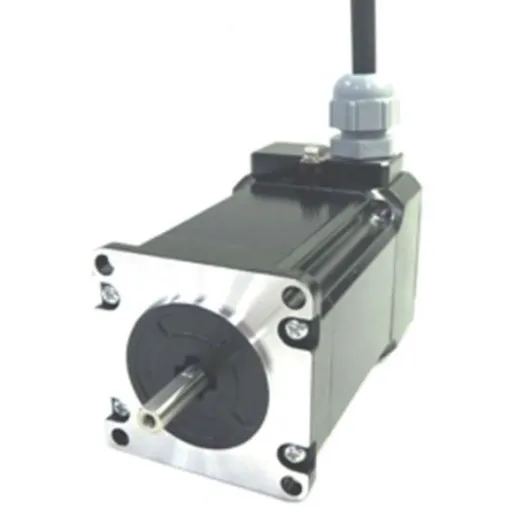

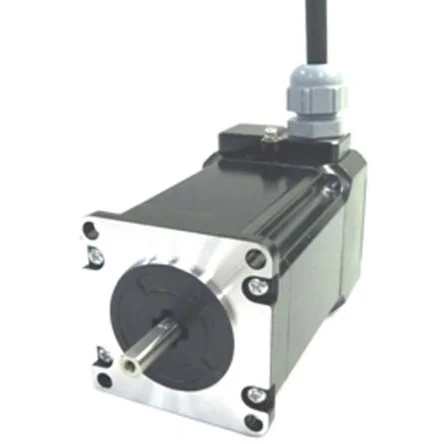

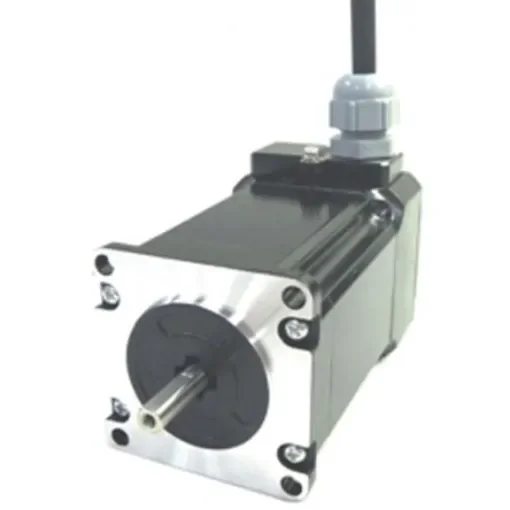

Sanyo Denki SP25 Series Hybrid, Single Shaft Stepper Motor, 1.0Nm Torque, 24 V, 1.8°, 56 x 56mm Frame, 6.35mm Shaft - SP2563-5160
High-performance Sanyo Denki hybrid stepper motor with 1.0Nm torque and 24V supply for versatile applications.
Manufacturer part number: SP2563-5160
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Stepper Motor Type = Hybrid, Single Shaft
Step Angle = 1.8°
Holding Torque = 1.0Nm
Number Of Wires = 4
Supply Voltage = 24 V
Frame Size = 56 x 56mm
Shaft Diameter = 6.35mm
Current Rating = 2 A
Winding Arrangement = Bipolar
Shaft Length = 19.1mm
Depth = 81.5mm
Resistance Per Phase = 1.5O
Standards Met = CE, UL, TUV, RoHS Compliant
Sanyo Denki IP65 Bipolar Stepper Motor. Sanyo Denki Sanmotion series of waterproof stepper motors provide the user with a premium quality product for a comprehensive range of applications. Offered in both Unipolar ; Bipolar winding options Single round and double round shaft designs with adequate length providing the user with a simple mounting solution Leaded options also available
