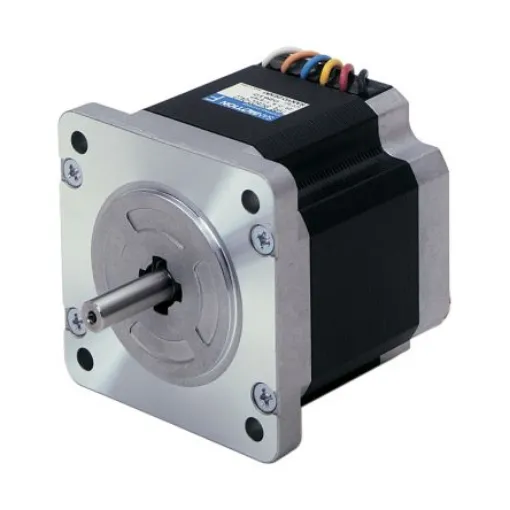

Sanyo Denki SM2863 Series Hybrid, Single Shaft Stepper Motor, 9.0Nm Torque, 100 V, 1.8°, 85.5 x 85.5mm Frame, 14mm Shaft - SM2863-5151
High-performance hybrid stepper motor with 9.0Nm torque for precise control.
Manufacturer part number: SM2863-5151
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Stepper Motor Type = Hybrid, Single Shaft
Step Angle = 1.8°
Holding Torque = 9.0Nm
Number Of Wires = 4
Supply Voltage = 100 V
Frame Size = 85.5 x 85.5mm
Shaft Diameter = 14mm
Current Rating = 4 A
Winding Arrangement = Bipolar
Shaft Length = 30mm
Depth = 128.5mm
Resistance Per Phase = 1O
Maximum Output Torque = 9 Nm
