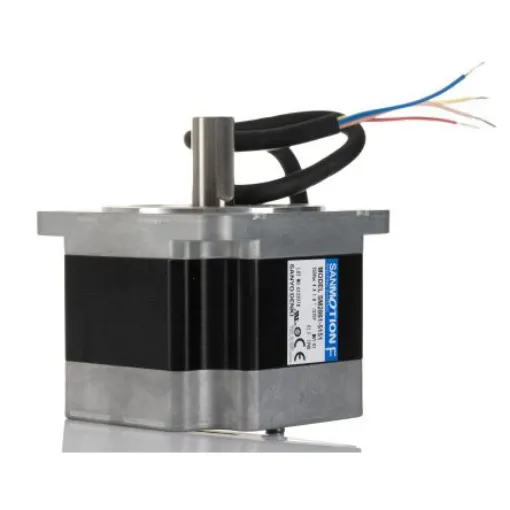

Sanyo Denki SM2861 Series Hybrid, Single Shaft Stepper Motor, 3.30Nm Torque, 100 V, 1.8°, 85.5 x 85.5mm Frame, 14mm - SM2861-5151
High-performance hybrid stepper motor with 3.30Nm torque for precise applications.
Manufacturer part number: SM2861-5151
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Stepper Motor Type = Hybrid, Single Shaft
Step Angle = 1.8°
Holding Torque = 3.30Nm
Number Of Wires = 4
Supply Voltage = 100 V
Frame Size = 85.5 x 85.5mm
Shaft Diameter = 14mm
Current Rating = 4 A
Winding Arrangement = Bipolar
Shaft Length = 30mm
Depth = 67.5mm
Resistance Per Phase = 0.56O
Standards Met = CE, UL, TUV, RoHS Compliant
