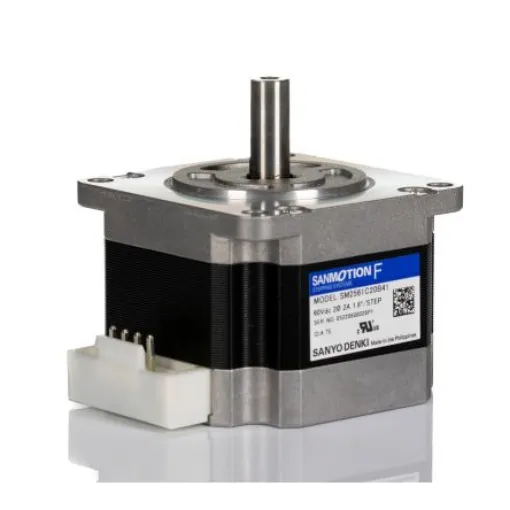

Sanyo Denki SM2561 Series Hybrid, Single Shaft Stepper Motor, 0.75Nm Torque, 24 V dc, 1.8°, 56 x 56mm Frame, 7.5mm Shaft - SM2561C20B41
High-performance hybrid stepper motor with 0.75Nm torque for precise applications.
Manufacturer part number: SM2561C20B41
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Stepper Motor Type = Hybrid, Single Shaft
Step Angle = 1.8°
Holding Torque = 0.75Nm
Number Of Wires = 4
Supply Voltage = 24 V dc
Frame Size = 56 x 56mm
Shaft Diameter = 7.5mm
Current Rating = 2 A
Winding Arrangement = Bipolar
Shaft Length = 20.6mm
Depth = 56mm
Resistance Per Phase = 1.1O
Output Speed = 3000 rpm
Standards Met = RoHS
