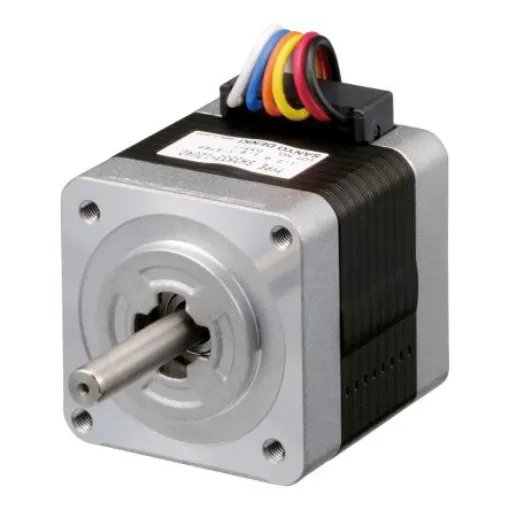

Sanyo Denki SH3533 Series Hybrid, Single Shaft Stepper Motor, 0.15Nm Torque, 24 V, 1.8°, 35 x 35mm Frame, 5mm Shaft - SH3537-12U40
Compact hybrid stepper motor with 0.15Nm torque, ideal for space-restricted applications.
Manufacturer part number: SH3537-12U40
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Stepper Motor Type = Hybrid, Single Shaft
Step Angle = 1.8°
Holding Torque = 0.15Nm
Number Of Wires = 6
Supply Voltage = 24 V
Frame Size = 35 x 35mm
Shaft Diameter = 5mm
Current Rating = 1.2 A
Winding Arrangement = Unipolar
Shaft Length = 20mm
Depth = 39mm
Resistance Per Phase = 2.7O
Standards Met = CE, UL, TUV, RoHS Compliant
Sanyo Denki SH353 Unipolar Stepper Motor. Sanyo Denki sanmotion unipolar stepper motors are a small 2 phase motor which provides high torque values. Designed to be used in space-restricted applications such as an electric gripper or electric cylinder. Double shaft options ; 878-7657 878-7657 ; ; 878-7660 878-7660 Lead wiring 1.8° step resolution 24V DC supply voltage
