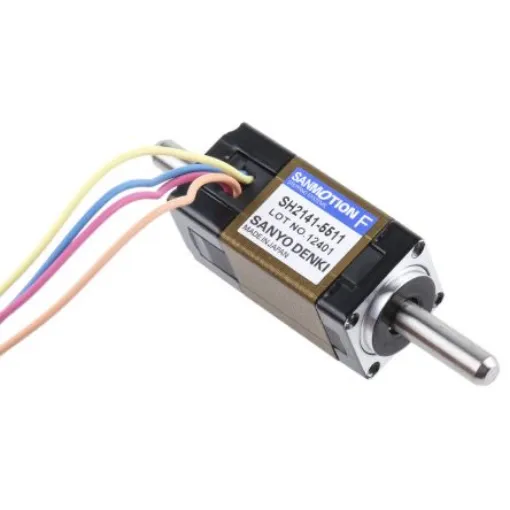

Sanyo Denki SH21 Series Hybrid, Double Shaft Stepper Motor, 6.5mNm Torque, 24 V, 1.8°, 14 x 14mm Frame, 4mm Shaft - SH2141-5511
Compact hybrid stepper motor with 6.5mNm torque, ideal for space-restricted applications.
Manufacturer part number: SH2141-5511
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Stepper Motor Type = Hybrid, Double Shaft
Step Angle = 1.8°
Holding Torque = 6.5mNm
Number Of Wires = 4
Supply Voltage = 24 V
Frame Size = 14 x 14mm
Shaft Diameter = 4mm
Current Rating = 300 mA
Winding Arrangement = Bipolar
Shaft Length = 15mm
Depth = 31.5mm
Resistance Per Phase = 21O
Standards Met = CE, UL, TUV, RoHS Compliant
Sanyo Denki SH2141 Series Bipolar Stepper Motor. Sanyo Denki Sanmotion bipolar stepper motors are a small 2 phase motor which provides high torque values. Designed to be used in space-restricted applications, for example as an electric gripper or electric cylinder. Available in single shaft ( ; 829-3534 829-3534 ) and double shaft ( ; 829-3538 829-3538 ) options 1.8° step resolution 24V DC supply voltage
