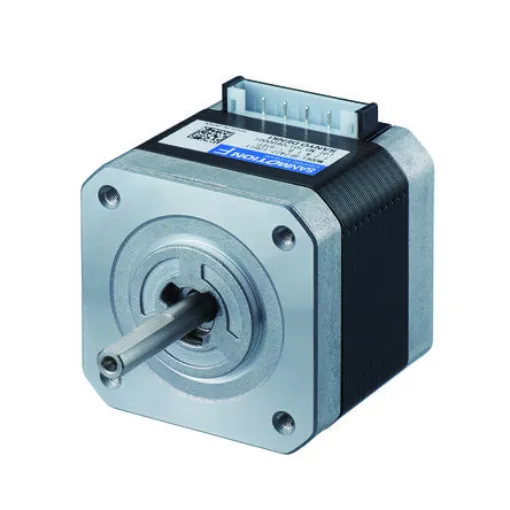

Sanyo Denki SF242 Series Hybrid, Single Shaft Stepper Motor, 0.43Nm Torque, 24 V, 1.8°, 42 x 42mm Frame, 5mm Shaft - SF2422-10B41
High-performance hybrid stepper motor with 0.43Nm torque for precise control.
Manufacturer part number: SF2422-10B41
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Stepper Motor Type = Hybrid, Single Shaft
Step Angle = 1.8°
Holding Torque = 0.43Nm
Number Of Wires = 4
Supply Voltage = 24 V
Frame Size = 42 x 42mm
Shaft Diameter = 5mm
Current Rating = 1 A
Winding Arrangement = Bipolar
Shaft Length = 24mm
Depth = 33mm
Resistance Per Phase = 3.6O
Standards Met = CE, UL, TUV, RoHS Compliant
