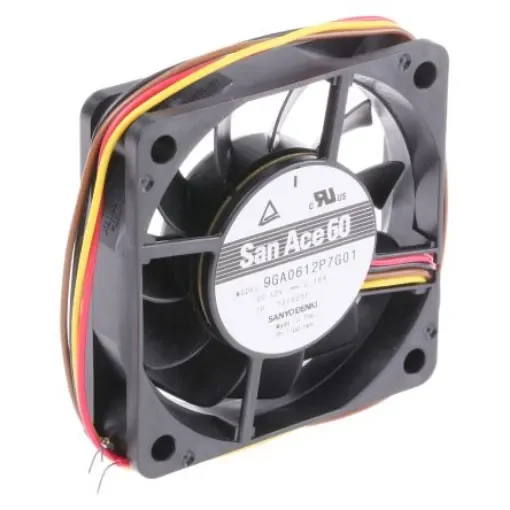

Sanyo Denki San Ace 9GA Series Axial Fan, 12 V dc, DC Operation, 41m³/h, 1.92W, 160mA Max, 60 x 60 x 15mm - 9GA0612P7G01
The Sanyo Denki San Ace 9GA Series axial fan delivers high airflow and low noise, perfect for efficient cooling.
Manufacturer part number: 9GA0612P7G01
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Supply Voltage = 12 V dc
AC or DC Operation = DCmm
Width = 60mm
Maximum Current = 160mA
Termination Type = Lead Wiremm
Noise Level = 38dB
Fan Speed = 5900rpm
Sensor Type = PWM, Tachometer
Bearing Type = Ball
San Ace Low Power DC Fans - GA Series. San Ace GA series low power DC fans are a highly power efficient solution to a range of fan requirements. Featuring high air flow, high static pressure and low noise. Low power high performance fans offering 15% to 38% energy saving over conventional fans Improved impeller, guided vanes, reduced mass, reduced noise by between 2dB and 6dB PWM control to further optimise power consumption and noise level (except 60 x 60 x10 mm frame size which have tachometer output only) High static pressure and high airflow Static pressure optimised at inflection point where fan operated for high impedance applications 30,000 to 60,000 hour life fans @ 60 Degree C Permanently lubricated dual ball bearing system
