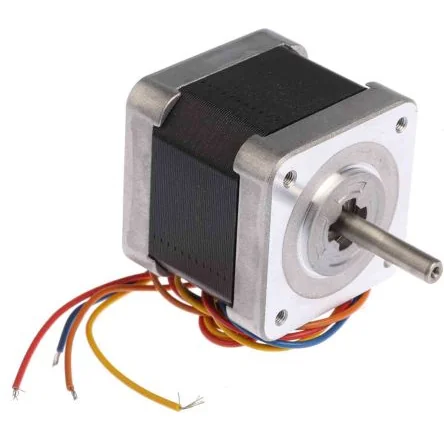

Sanyo Denki Hybrid, Single Shaft Stepper Motor, 0.39Nm Torque, 24 V, 1.8°, 42 x 42mm Frame, 5mm Shaft - 103H5208-5240
High-performance Sanyo Denki hybrid stepper motor with 0.39Nm torque for precise control.
Manufacturer part number: 103H5208-5240
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Stepper Motor Type = Hybrid, Single Shaft
Step Angle = 1.8°
Holding Torque = 0.39Nm
Number Of Wires = 6
Supply Voltage = 24 V
Frame Size = 42 x 42mm
Shaft Diameter = 5mm
Current Rating = 1 A
Winding Arrangement = Bipolar
Shaft Length = 24mm
Depth = 40.5mm
Resistance Per Phase = 4.1O
Standards Met = CE, UL, TUV, RoHS Compliant
Sanyo Denki Sanmotion 103H5 Series Stepper Motor. Sany Denki range of Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered. Offered in both Unipolar ; Bipolar winding options Single round and double round shaft designs with adequate length providing the user with a simple mounting solution Leaded options also available
