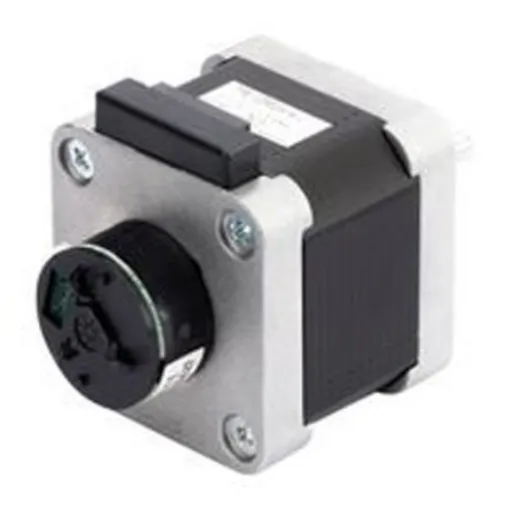

Sanyo Denki 2H42 Series Hybrid, Single Shaft Stepper Motor, 0.37Nm Torque, 36 V, 1.8°, 42 x 42mm Frame, 5mm Shaft - 2H4248U12R220
High-performance Sanyo Denki stepper motor with 0.37Nm torque for precise control in various applications.
Manufacturer part number: 2H4248U12R220
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Stepper Motor Type = Hybrid, Single Shaft
Step Angle = 1.8°
Holding Torque = 0.37Nm
Number Of Wires = 6
Supply Voltage = 36 V
Frame Size = 42 x 42mm
Shaft Diameter = 5mm
Current Rating = 1.2 A
Winding Arrangement = Unipolar
Shaft Length = 24mm
Depth = 42mm
Resistance Per Phase = 3.3O
Standards Met = CE, UL, TUV, RoHS Compliant
Sanyo Denki 2H42 Series Stepper Motors. Sanyo Denki range of 2H42 series Stepper Motors providing the user with a comprehensive range of options to ensure that your application is covered. These 42 mm Sq. stepper motors are lead wire and connector type and are available with a step angle from 0.9° to 1.8°. Offered in both Unipolar ; Bipolar winding options. Single round and double round shaft designs with adequate length providing the user with a simple mounting solution. Leaded options also available
