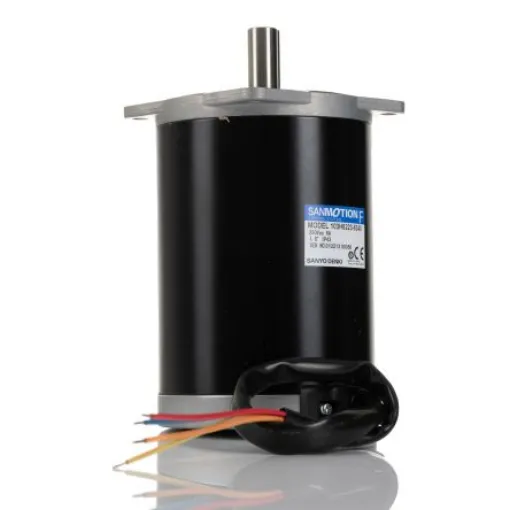

Sanyo Denki 103H8 Series Hybrid, Single Shaft Stepper Motor, 7.44Nm Torque, 100 V, 1.8°, 85.85 x 85.85mm Frame, 12mm - 103H8223-6340
High-performance Sanyo Denki stepper motor with 7.44Nm torque for precise applications.
Manufacturer part number: 103H8223-6340
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Stepper Motor Type = Hybrid, Single Shaft
Step Angle = 1.8°
Holding Torque = 7.44Nm
Number Of Wires = 4
Supply Voltage = 100 V
Frame Size = 85.85 x 85.85mm
Shaft Diameter = 12mm
Current Rating = 6 A
Winding Arrangement = Bipolar
Shaft Length = 30mm
Depth = 127.42mm
Resistance Per Phase = 0.45O
Standards Met = CE, UL, TUV, RoHS Compliant
