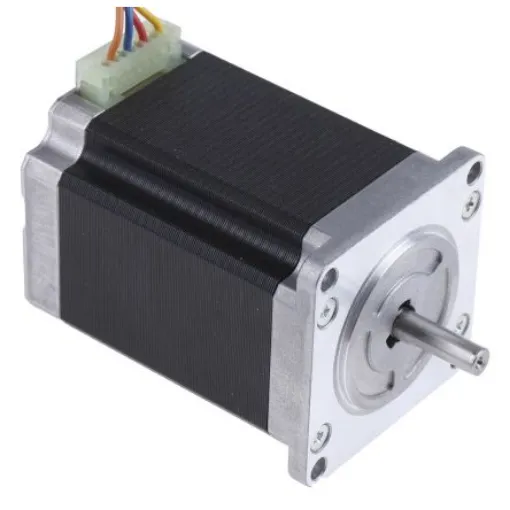

Sanyo Denki 103H7 Series Hybrid, Single Shaft Stepper Motor, 1.6Nm Torque, 24 V, 1.8°, 56 x 56mm Frame, 6.35mm Shaft - 103H7126-5740
High-performance Sanyo Denki stepper motor with 1.6Nm torque for precise control in various applications.
Manufacturer part number: 103H7126-5740
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Stepper Motor Type = Hybrid, Single Shaft
Step Angle = 1.8°
Holding Torque = 1.6Nm
Number Of Wires = 4
Supply Voltage = 24 V
Frame Size = 56 x 56mm
Shaft Diameter = 6.35mm
Current Rating = 2 A
Winding Arrangement = Bipolar
Shaft Length = 20.6mm
Depth = 77.3mm
Resistance Per Phase = 2O
Standards Met = CE, UL, TUV, RoHS Compliant
Sanyo Denki 103H7 Series Stepper Motor. Sany Denki range of 103H7 Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered. Offered in both Unipolar ; Bipolar winding options Single round and double round shaft designs with adequate length providing the user with a simple mounting solution Leaded options also available
