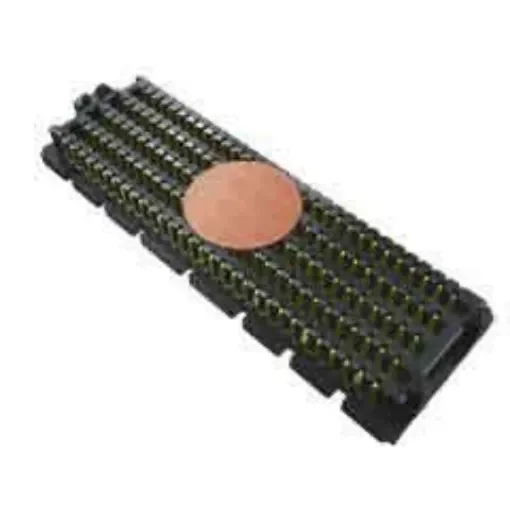

Samtec SEAM Series Straight Surface Mount PCB Header, 240 Contact(s), 1.27mm Pitch, 8 Row(s), Shrouded - SEAM-30-03.5-S-08-2-A-K-TR

Series = SEAM
Pitch = 1.27mm
Number of Contacts = 240
Number of Rows = 8
Body Orientation = Straight
Shrouded/Unshrouded = Shrouded
Mounting Type = Surface Mount
Termination Method = Solder
Contact Material = Copper Alloy
Current Rating = 2.7A
Voltage Rating = 240.0 V

1.27mm SEARAY™ Series Interconnects. SEARAY™ is a 1.27mm high density, high speed board-to-board interconnect system. These SEAM / SEAF Series connectors can be mapped as a single-ended application, differential pair application, or a combination of both. When routed as a single-ended system, SEARAY™ is rated at 12.5 GHz @ -3dB. The SEAM / SEAF Series of High Speed / High Density Open Pin Field Array employs Solder Charge Technology for improved solder joint reliability. These SEAM SEAF Series SEARAY™ High Speed / High Density Open Pin Field Array use the Samtec Edge Rate contact system which gives high speed performance, zippering when mating and unmating as well as lowering insertion and extraction forces. Various rows high density connectors suitable for board stacking applications Stack height dependant upon SEAF/SEAM combination from 7 mm Contact resistance: 5.5 mO Contact Plating: 0.76 µm Gold on contact area with Matte Tin on tail area
