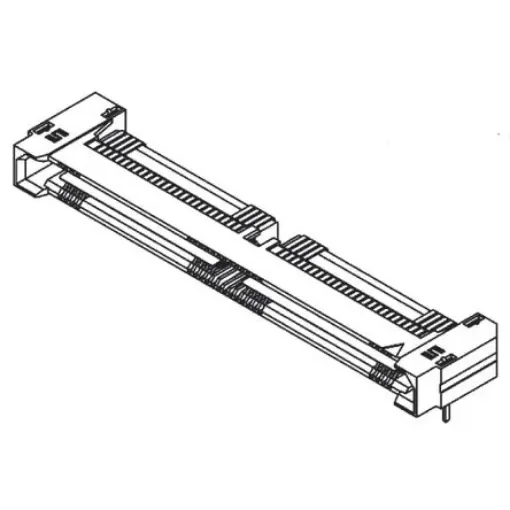

Samtec QRF8 Series Right Angle Surface Mount PCB Socket, 52-Contact, 2-Row, 0.8mm Pitch, Solder Termination - QRF8-026-01-L-RA-GP
Reliable right angle PCB socket with 52 contacts for secure board-to-board connections.
Manufacturer part number: QRF8-026-01-L-RA-GP
Mates with QRM8 Series Headers see stock number ; 767-7115 767-7115 typical. Guide Post versions require Guide Post mating articles. QRF8 Series Slim Body Ground Plane Sockets. These Board to Board QRF8 Series connectors have 0.25 µm Gold plated contacts with Tin plated Tails. This range of Board to Board QRF8 Series connectors are available: with and without Guide Posts, straight or right angle, 5 or 7 mm body heights. The design of these Board to Board QRF8 Series connector includes samtec's Edge Rate contacts. QRF8-xxx- 05.0 -x-x-x-xx have a Body height of 5 mm QRF8-xxx- 07.0 -x-x-x-xx have a Body height of 7 mm QRF8-xxx-xx.x-x-x-x- GP have Guide Posts QRF8-xxx-xx-x- RA-GP have a horizontal orientation with Guide Posts
