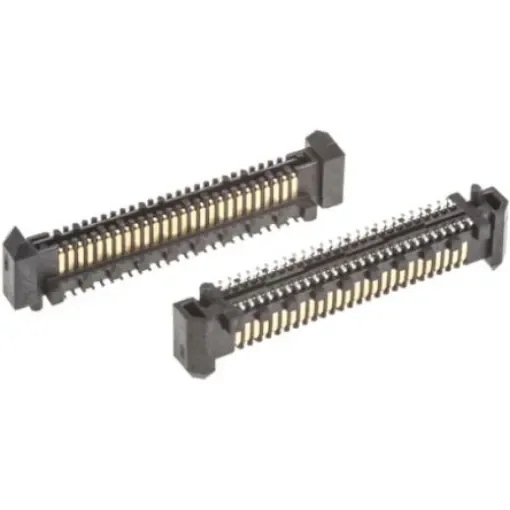

Samtec Q Rate QRM8 Series Straight Surface Mount PCB Header, 156 Contact(s), 0.8mm Pitch, 2 Row(s), Shrouded - QRM8-078-07.0-L-D-A-GP

Series = Q Rate QRM8
Pitch = 0.8mm
Number of Contacts = 156
Number of Rows = 2
Shrouded/Unshrouded = Shrouded
Connector System = Board to Board
Termination Method = Solder
Contact Plating = Gold
Current Rating = 2.0A
Voltage Rating = 215.0 V

Mates with QRF8 Series Sockets see stock number ; 767-7082 767-7082 typical. Guide Post versions require Guide Post mating articles. QRM8 Series Slim Body Ground Plane Headers. These Board to Board QRM8 Series connectors have 0.25 µm Gold plated contacts with Tin plated Tails. This range of Board to Board QRM8 Series connectors are available: with and without Guide Posts, straight or right angle, 2, 5 or 7 mm body heights. Alignment Pins are included in this rangeThe design of the Board to Board QRM8 Series connector includes samtec's Edge Rate contacts. QRM8-xxx- 02.0 -x-x-x-xx have a Body height of 2 mm QRM8-xxx- 07.0 -x-x-x-xx have a Body height of 7 mm QRM8-xxx-xx.x-x-x-x- GP have Guide Posts QMR8-xxx-xx-x- RA-GP have a horizontal orientation with Guide Posts
