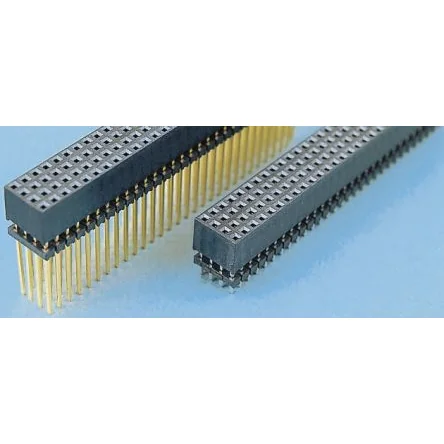

Samtec ESQT Series Straight Through Hole Mount PCB Socket, 120-Contact, 4-Row, 2mm Pitch, Solder Termination - ESQT-130-03-M-Q-368

ESQT Series Elevated Sockets - PC104 Range. These ESQT Series of Board to Board, 2 mm pitch, Quad Row Elevated Socket Strips have Gold plated Tiger Buy contacts and either Gold or Tin plated Tails, see table. This range of ESQT Series of Board-to-Board, 2 mm pitch, Quad Row Elevated Socket Strips are available with different Lead Styles see diagram and Table for sizes. The ATS-30-Q stock number ; 766-6363 766-6363 is a tail shroud for use with these ESQT Series of Board to Board, 2 mm pitch, Quad Row Elevated Socket Strips. The design of the ATS-30-Q includes board locks to a positive location of the shroud and the ESQT sockets. Accepts 0.5mm square pins for board to board applications Developed for use in high vibration environments. Operating Temperature: -55°C to +125°C Contact Resistance: 10 mO max. Insulator Material: Black LCP
