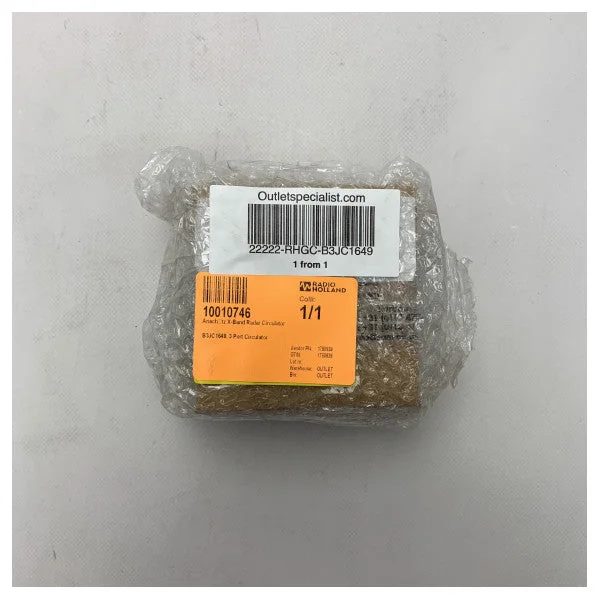

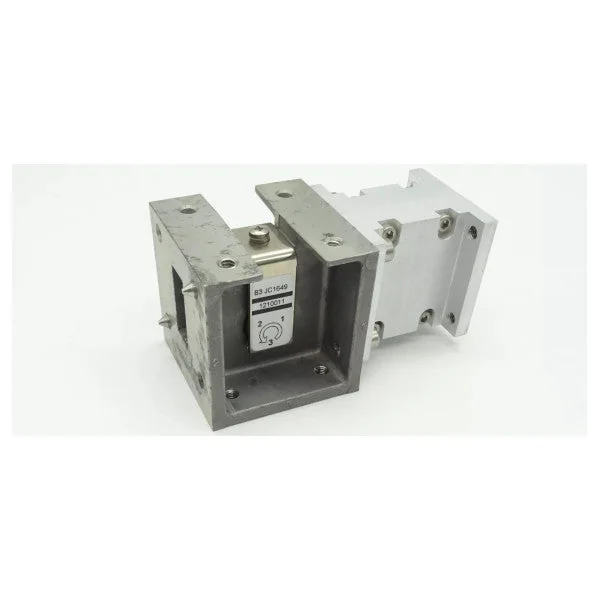

SAM Electronics X-Band B3JC1649 Junction Circulator: Reliable Isolation for Your Critical X-Band Systems
The SAM Electronics X-Band B3JC1649 Junction Circulator is an essential component for ensuring signal integrity and preventing unwanted reflections in your X-Band communication, radar, and test systems. This high-quality circulator offers excellent isolation, low insertion losses, and a wide frequency range, making it ideal for demanding applications.
Features:
-
Excellent Isolation: Minimises signal interference and protects sensitive components.
-
Low Insertion Losses: Ensures efficient signal transmission and optimises system performance.
-
Wide Frequency Range: Supports a broad range of X-Band applications.
-
Compact and Robust Construction: Suitable for integration in various environments.
-
High Reliability: Designed for long-lasting and consistent performance.
Specifications:
-
Frequency Range: 8.5 - 10.0 GHz
-
Isolation: 20 dB (min.)
-
Insertion Loss: 0.4 dB (max.)
-
VSWR: 1.25 (max.)
-
Average Input Power: 20 W
-
Peak Input Power: 1 kW
-
Connectors: SMA female
-
Dimensions: 38.1 x 38.1 x 12.7 mm
-
Weight: 68 g
Applications:
-
Radar: Protects transmitters and receivers from unwanted signals.
-
Communication: Improves signal-to-noise ratio and reduces interference.
-
Test and Measurement Equipment: Ensures accurate measurements and calibrations.
Optimise your X-Band Systems with the SAM Electronics X-Band B3JC1649 Junction Circulator.
