Sailor 6280 Class A AIS Transponder System
The Sailor 6280 Class A AIS is a reliable and advanced system that is essential for safety at sea. As part of the renowned Sailor 6000 series, this system offers seamless integration and a user-friendly interface. It is designed to meet the strictest international requirements for commercial shipping and provides optimal performance in the most challenging maritime conditions.
Maximum Safety and Ease of Use

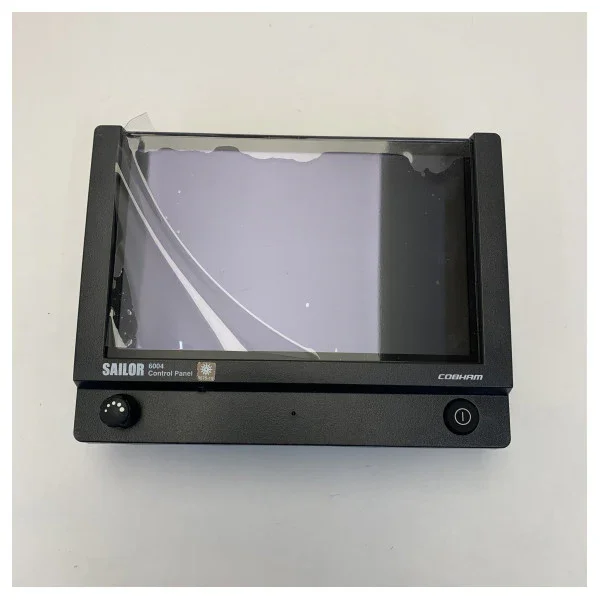

This system excels due to its modular design. Instead of an all-in-one device, the Sailor 6280 consists of a black box transponder that can be mounted in a remote location, while the operation is carried out via the innovative Sailor 6004 Control Panel. This touchscreen provides a clear overview of all surrounding vessels and AIS messages, significantly improving navigation and safety.
Key Features
- Touchscreen Operation: Full control via the Sailor 6004 Control Panel with a sharp display for day and night.
- Modular Design: The transponder can be placed out of sight, saving space at the navigation console.
- Reliable Performance: Designed for continuous use in harsh environments with a high degree of durability.
- Easy Installation: Thanks to Sailor Thrane-Link technology, the various components communicate effortlessly with each other.
Specifications and Technical Details
The Sailor 6280 system is built with attention to detail and technical perfection. Below are the key technical specifications incorporated into the system:
- System Type: Class A AIS Transponder for professional use.
- Control Interface: Sailor 6004 Control Panel with a resolution of 640 by 480 pixels.
- Power Supply Voltage: Suitable for 12 Volt to 24 Volt DC installations.

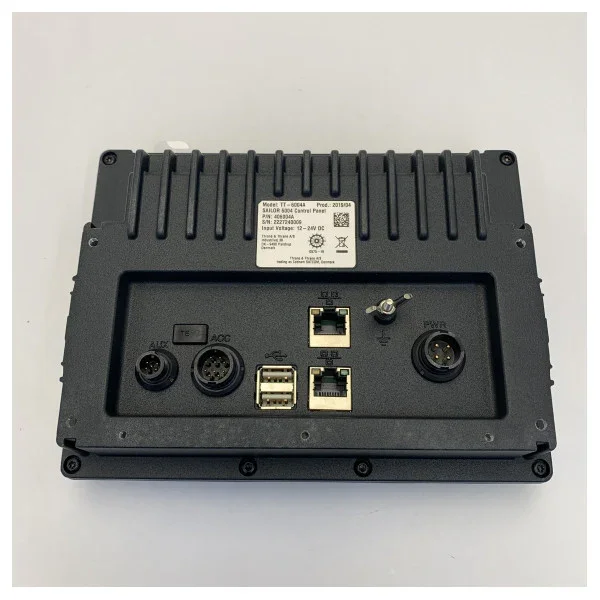

- Data Connections: Equipped with multiple LAN ports (Ethernet) for integration with other systems on board.
- Frequency Range: 156.025 MHz to 162.025 MHz.
- Channels: Support for 160 duplex channels and 80 simplex channels.
- Transponder Weight: Approximately 1.1 kilograms.
- Water Resistance: The transponder unit has an IPX2 rating, while the front control panel meets IP54 standards.
Package Contents

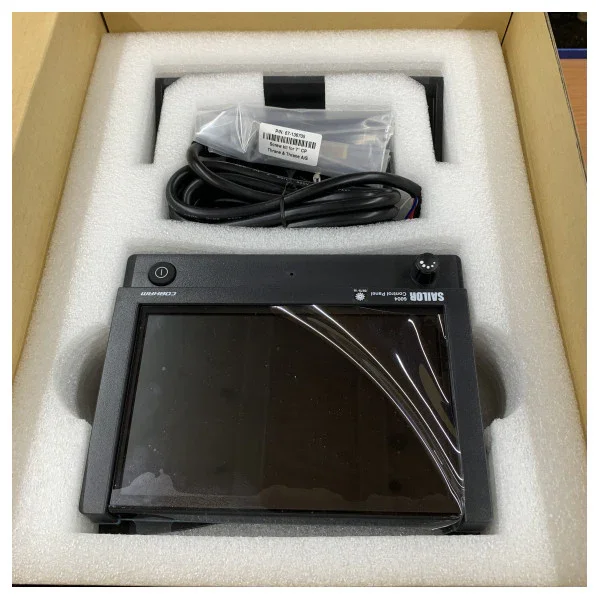

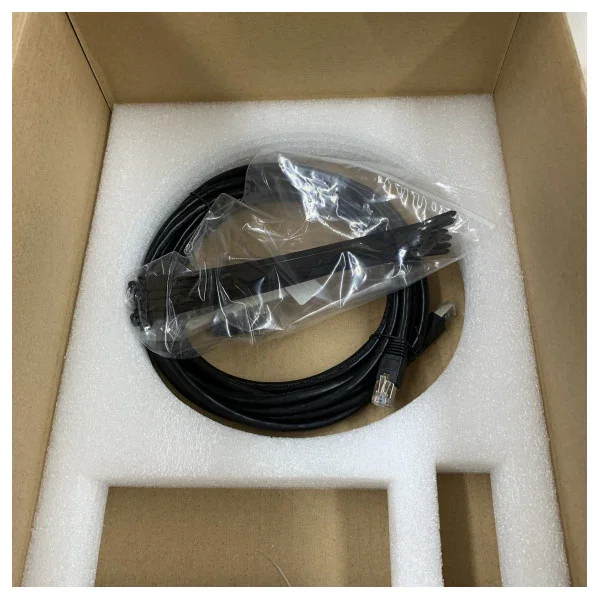

Upon purchasing this system, you will receive the Sailor 6282 AIS Class A Transponder, the Sailor 6004 Control Panel, a mounting bracket, power cables, and the necessary manuals for installation and configuration.
