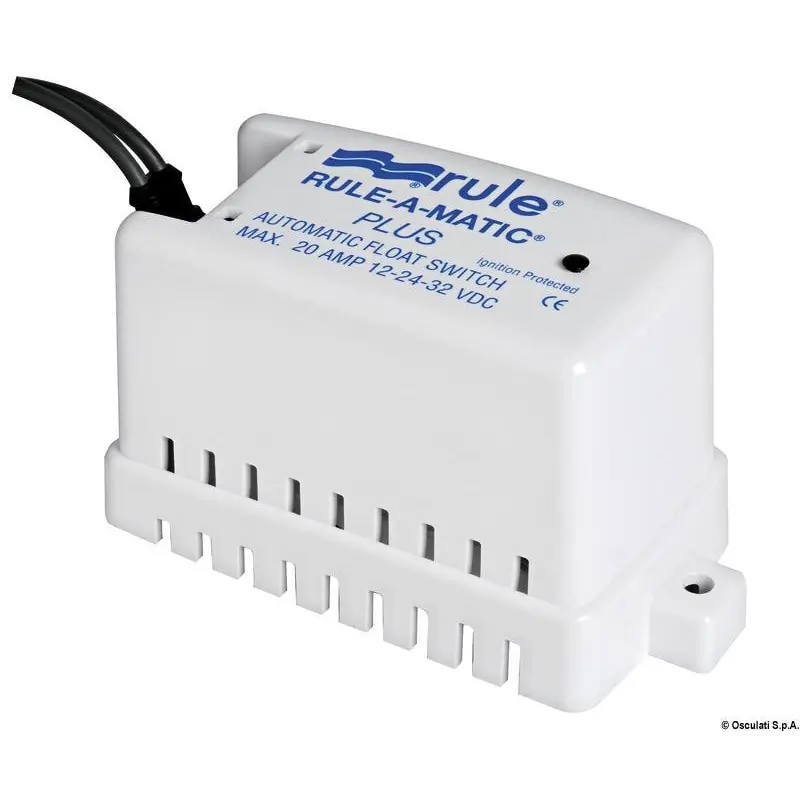

Key Features:
- Automatic Pump Activation: Activates bilge pumps when water levels reach 2 inches (51 mm) and deactivates them when levels fall to 3/4 inch (19 mm).
- Impact-Resistant Design: Features a strong, fully integrated, impact-resistant cover that protects against debris and jamming.
- Mercury-Free Operation: Environmentally friendly design without the use of mercury.
- Detachable Mounting Base: Allows for easier installation and removal for cleaning.
- Manual Test Feature: Enables manual testing to check for obstructions.
- High Durability: Tested for over 1,000,000 cycles at 12V DC.
Technical Specifications:
- Nominal Voltage: 12/24/32V DC
- Current Draw:
12V: 20A
24V: 10A
32V: 6.5A
- Wire Size: 14 AWG
- Wire Length: 28 inches (71.12 cm)
- Dimensions: 2-7/8 inches (7.3 cm) H x 2-1/2 inches (6.4 cm) W x 5-1/4 inches (13.3 cm)
Materials:
- Wire: Highly abrasion-resistant marine-grade blocked wire
- Seals: Exclusive moisture-tight seals
- Cover: Impact-resistant cover
Compatibility Information:
Designed for use with bilge pumps drawing up to 20 amps at 12V, 10 amps at 24V, and 6.5 amps at 32V.
