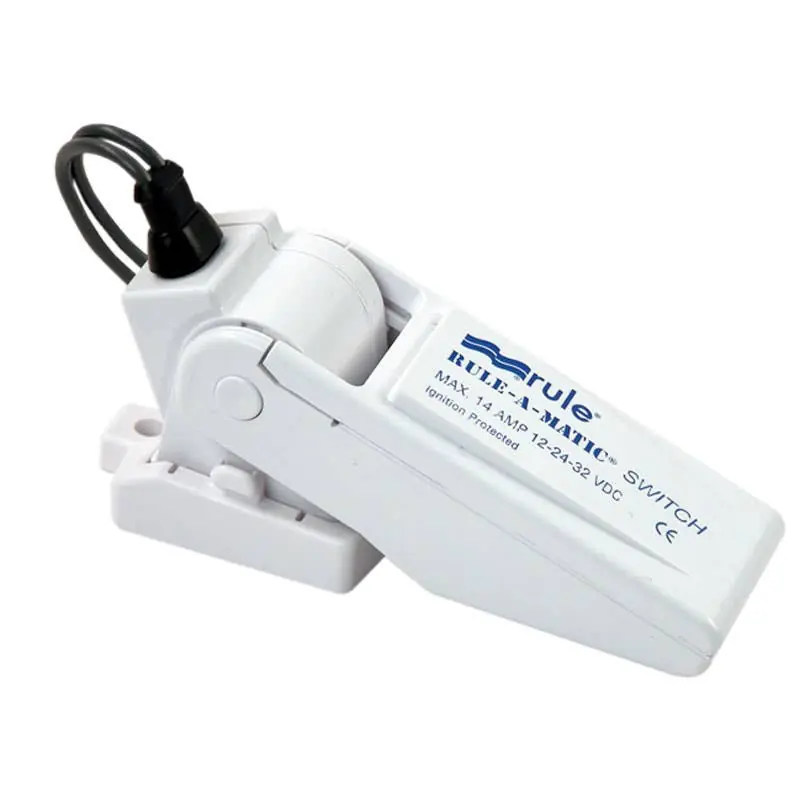

The Rule-A-Matic® Float Switch is designed to convert manual bilge pumps into automatic systems, ensuring efficient water removal in marine environments. This model is specifically tailored for Rule 7/14 manual electric pumps.
- Automatic Operation: Activates the bilge pump when water levels reach 2 inches (51 mm) and deactivates when levels drop to 3/4 inch (19 mm).
- Mercury-Free Design: Utilizes a mercury-free snap switch, enhancing environmental safety.
- Durable Construction: Features a fully integrated, impact-resistant cover that protects against debris and jamming.
- Removable Base: Allows for easy installation, cleaning, and maintenance.
- High Cycle Life: Snap switch tested to over one million cycles at 12V DC.
- Marine-Grade Wiring: Equipped with highly abrasion-resistant, marine-grade blocked wire.
Technical Specifications
- Voltage Compatibility: 12V, 24V, and 32V DC systems.
- Maximum Current Draw: 14 Amps.
- Wire Size: 16 AWG.
- Wire Length: 28 inches (71.12 cm).
- Dimensions: 2-5/8 inches (6.67 cm) in height, 1-3/4 inches (4.45 cm) in width, and 5 inches (12.7 cm) in length.
- Weight: 0.22 pounds (0.10 kg).
Materials
- Housing: Impact-resistant plastic.
- Wiring: Marine-grade blocked wire.
- Seals: Moisture-tight seals for enhanced durability.
Compatibility Information
This float switch is compatible with Rule 7/14 manual electric pumps, enabling them to function automatically. It is suitable for use in various marine applications where automatic bilge pumping is required.
