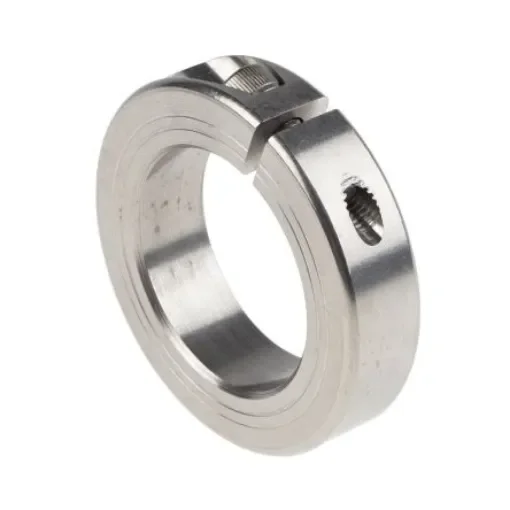

Ruland Shaft Collar, One Piece, Clamp Screw, Bore 50mm, OD 78mm, W 19mm, Stainless Steel - MCL-50-SS

Shaft Diameter = 50mm
One/Two Piece = One Piece
Material = Stainless Steel
Single/Double Wide = Single
Outside Diameter = 78mm
Fastening = Clamp Screw
Width = 19mm

Ruland Shaft Collar One-piece Clamp ScrewThe Ruland one-piece shaft collar has dimensions of 50mm bore, 78mm OD and 19mm width. It is made from 303 stainless steel with a bright finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of = 0.05mm) which is critical for the alignment. It is stamped with the Ruland name and bore size for ease of identification. The collar has a clamp screw of M8x25 dimension.Features and Benefits• Lightweight • Easily adjustable • Hassel free removability • Excellent holding power • Service temperature ranges between -40°C and 176°CApplications• Component alignment • Component mounting • Loadbearing face • Mechanical stopCertifications• DIN 912 12.9 • REACH certification
