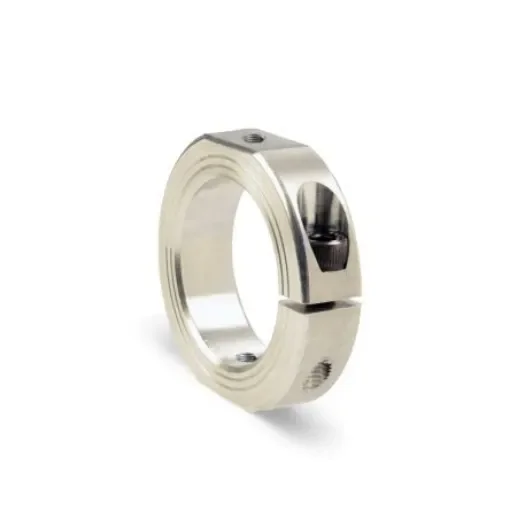

Ruland Shaft Collar, One Piece, Clamp Screw, Bore 25mm, OD 45mm, W 15mm, Aluminium - OF-MCL-25-A
This Ruland shaft collar ensures precise alignment and easy mounting for various applications.
Manufacturer part number: OF-MCL-25-A
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Shaft Diameter = 25mm
One/Two Piece = One Piece
Material = Aluminium
Single/Double Wide = Single
Outside Diameter = 45mm
Fastening = Clamp Screw
Threaded Bore Size = M6 x 16
Width = 15mm
Ruland OF-MCL-25-A is a one-piece shaft collar with 25mm bore, 45mm OD, and 15mm width. OF-MCL-25-A has OD flats and tapped holes for mounting shaft collars to each other or adjacent components. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. OF-MCL-25-A is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of = .05mm). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power.
