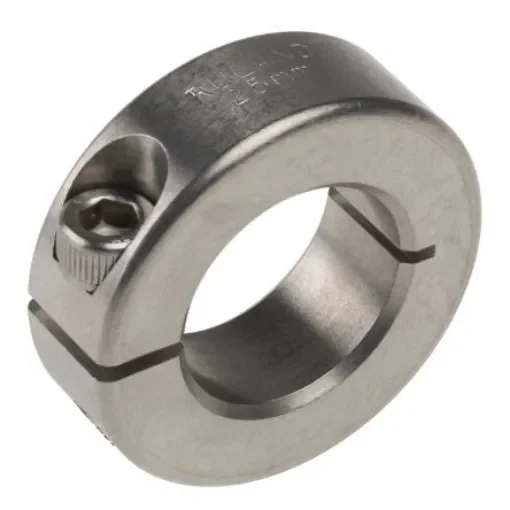

Ruland Shaft Collar, One Piece, Clamp Screw, Bore 25mm, OD 45mm, W 15mm, 303 Stainless Steel - MCL-25-SS

Shaft Diameter = 25mm
One/Two Piece = One Piece
Material = 303 Stainless Steel
Single/Double Wide = Single
Outside Diameter = 45mm
Fastening = Clamp Screw
Width = 15mm
Finish = Bright

Ruland Shaft Collar One-piece Clamp ScrewThe Ruland one-piece shaft collar has dimensions of 25mm bore, 45mm OD and 15mm width. It is made from 303 stainless steel with a bright finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of = 0.05mm) which is critical for the alignment. It is stamped with the Ruland name and bore size for ease of identification. The collar has a clamp screw of M6x16 dimension.Features and Benefits• Lightweight • Easily adjustable • Hassel free removability • Excellent holding power • Service temperature ranges between -40°C and 176°CApplications• Component alignment • Component mounting • Loadbearing face • Mechanical stopCertifications• DIN 912 12.9 • REACH certification
