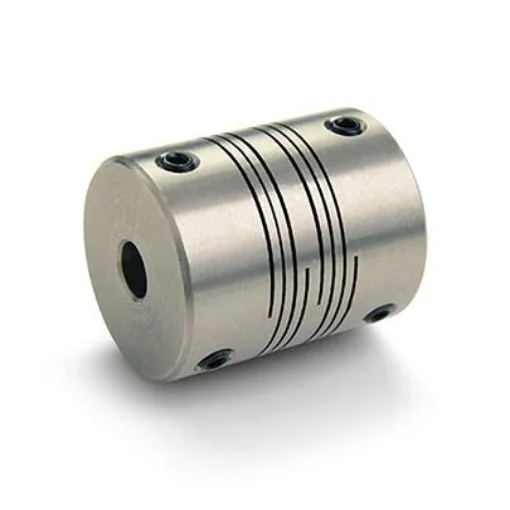

Ruland Beam, 20mm Outside Diameter, 4 mm, 6 mm Bore, 20mm Length Flexible Coupling - MWS20-6-4-SS

Coupling Types = Beam
Outside Diameter = 20mm
Length = 20mm
Fastening Type = Set Screw
Torque Rating = 0.92Nm
