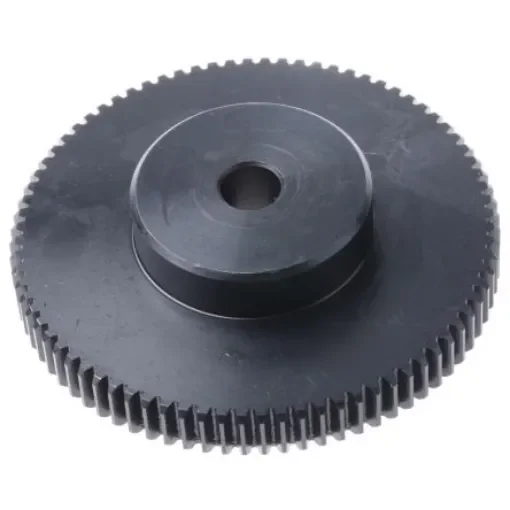

RS PRO Steel 80 Teeth Spur Gear, 1 Module, 10mm Bore Diam, 80mm Pitch Diam, 40mm Hub Diam - 5216389

Module = 1
Number of Teeth = 80
Material = Steel
Bore Diameter = 10mm
Pitch Diameter = 80mm
Hub Diameter = 40mm
Face Width = 10mm

DIN Standard - DIN 867, DIN 3962, DIN 3963, Grade / Quality 9 or equivalent. SSN10/10B and SSN10/12B are hobbed type pinions with cutter runout after the 5 mm gear face width. RS PRO Steel Spur Gears. Use these steel spur gears from RS PRO to get your industrial equipment moving. Our extensive range of spur gears is selected for their high-quality, ease of use and performance while ensuring the correct power, torque multiplication, and speed reduction. To obtain your ideal solution, browse the range using the improved filters to locate the module to suit your application. Also known as. ;ul> ;li>Straight gears ;/li> ;li>Straight-cut gears ;/li> ;li>Spur wheels ;/li> ;li>Spur gearing ;/li> ;/ul>. Features and Benefits. ;ul> ;li>Steel EN8 (080M40/080M46) or equivalent ;/li> ;li>Range of gear ratios ;/li> ;li>Ideally used for speed reduction or increase, torque multiplication, resolution and accuracy in positioning systems. ;/li> ;li>20° pressure angle ;/li> ;li>Metric ;/li> ;/ul>. Applications. ;ul> ;li>Machine Tools ;/li> ;li>Transmissions ;/li> ;li>Speed Reduction ;/li> ;/ul>
