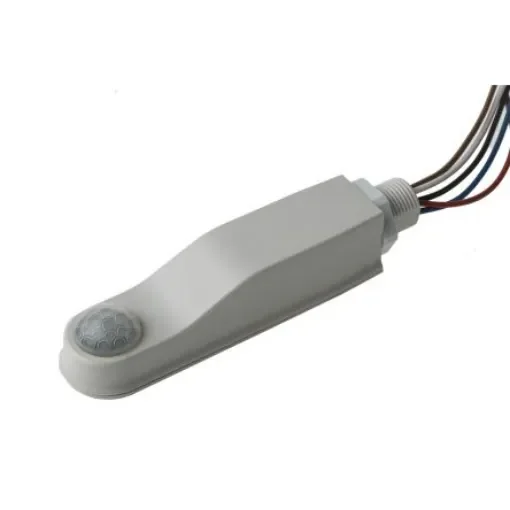

RS PRO Presence Detector PIR Sensor, 16m Sensor Range - 7962025

Batten Mount PIR Detector IP65 Programmable with Handset. This series of miniature PIR (passive infrared) presence detectors provide automatic control of lighting loads with optional manual control using an infrared handset. It is specifically designed for mounting onto a batten style luminaire. Three models are available: premium, direct dim, and analogue dim all of which will switch incandescent, fluorescent, compact fluorescent and LED lighting. The direct dim variant controls DALI or DSI digital dimming ballasts whilst the analogue dim variant controls 1-10V dimming ballasts. The unit detects movement using a PIR sensor and turns the load on. When an area is no longer occupied the load will switch off after an adjustable time out period. The units are IP65 rated as standard and are therefore suitable for outdoor use as well as wet and wash-down areas. A selection of fixing washers is supplied to aid fixing to a variety of luminaires. All functionality is fully programmable using an IR handset. PIR Sensor detects movement Receives commands from an IR handset Light level sensor measures light level IP65 rated Material Flame retardant ABS/PC Type Class 2
