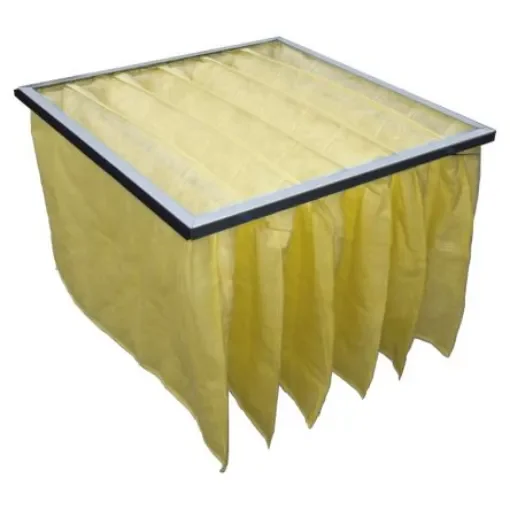

RS PRO Polypropylene Bag Filter, F8 Grade, 14 MERV Rating, 592 x 492 x 600mm - 8279762

Filter Type = Bag
Nominal Dimensions = 24 x 20 x 24in
Actual Dimensions = 592 x 492 x 600mm
ISO 16890 Class = ISO-2.5-50
Number of Pockets = 5
Filter Grade = F8
Maximum Air Flow = 76.47m³/h
Initial Pressure Drop = 110Pa
Final Pressure Drop = 350Pa
Colour = Yellow
Case Material = Galvanised Steel
Media Material = Polypropylene
Actual Depth = 600mm
Actual Width = 492mm

For reference when consulting the datasheet: ; 827-9683 827-9683 = EC8-2415/8 ; 827-9715 827-9715 = EC8-2424/8 ; 827-9712 827-9712 = EC8-1215/4 ; 827-9737 827-9737 = EC8-1220/4 ; 827-9734 827-9734 = EC8-1224/4 ; 827-9752 827-9752 = EC8-2015 ; 827-9765 827-9765 = EC8-2020 ; 827-9762 827-9762 = EC8-2024. RS Ecoflow90 Fine Efficiency Rated Bag Filters. The RS Ecoflow90 range of bag filters are widely used in applications where low cost fine filtration is required. Ecoflow bag filters are manufactured by mounting a 100% polypropylene synthetic electrostatically charged media into a galvanised steel header frame. Hydrophobic polypropylene media allows great performance in damp atmospheres Rolled steel safety edges on the frames to prevent filter material damage and ensure these bag filters are safe to install Extra built-in pre-filter layer which provides extended filter life (triple-filtration) Ultrasonically welded seams ensure leak free pockets Available in most sizes and pocket configurations Totally non-toxic and non-irritant Electrostatically charged Average Efficiency at 0.4 micron (measured on electrostatically charged media) = 90% Rating to ASHRAE 52.2 Test Standard = Merv 14
