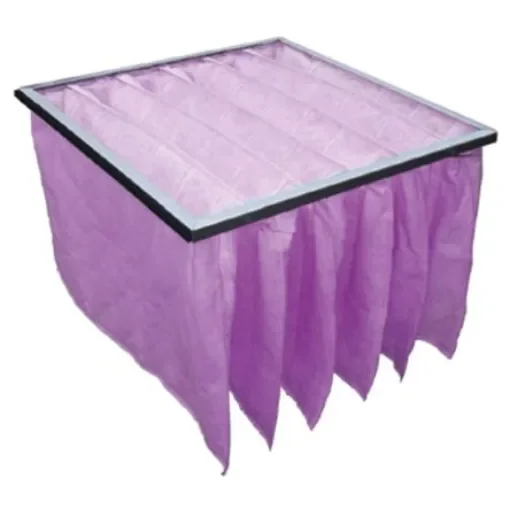

RS PRO Polypropylene Bag Filter, F7 Grade, 13 MERV Rating, 592 x 592 x 350mm - 8279695

Filter Type = Bag
Nominal Dimensions = 24 x 24 x 15in
Actual Dimensions = 592 x 592 x 350mm
ISO 16890 Class = ISO-10-80
Number of Pockets = 8
Filter Grade = F7
Maximum Air Flow = 58.37m³/h
Initial Pressure Drop = 105Pa
Final Pressure Drop = 350Pa
Colour = Pink
Case Material = Galvanised Steel
Media Material = Polypropylene
Actual Depth = 350mm
Nominal Height = 24in

RS PRO Bag FilterThe RS PRO Ecoflow80 F7 grade pink bag filter is manufactured by mounting the 100% polypropylene synthetic electrostatically charged media into a galvanised steel header frame. It is hydrophobic, which ensures great performance in damp atmospheres. This bag is widely used in applications where low-cost fine filtration is required.Features and BenefitsTriple filtration layered Totally non-toxic and non-irritant The frame has a rolled safety edge which prevents damage to the media and is safe to install Extra build-in pre-filter layer provides extended filter life Ultrasonically welded seams provide leak free pockets Available in most sizes and pocket configurations AVerage efficiency (measured on electrostatically charged media) at 0.4 micron* is 80% Minimum velocity required is 1.2m/s Actual Dimensions are 592mm x 592mm x 350mm The filter MERV rating is 13 Number of pockets are 8 Maximum airflow is 58.37m³/h Initial pressure drop is 105Pa Final pressure drop is 350Pa Header size is 20mmApplicationsGovernment buildings Hospitals Theatres Spray booths Computer rooms Offices
