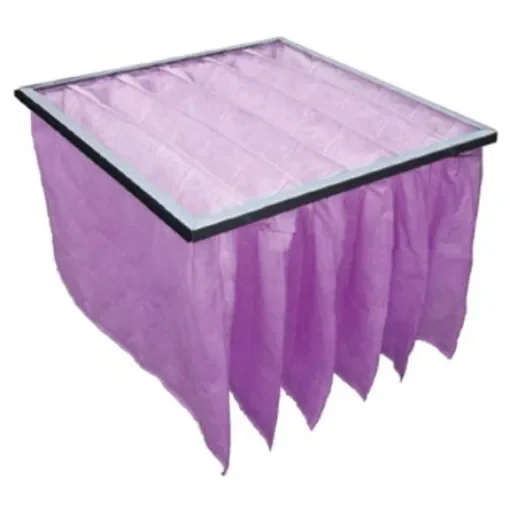

RS PRO Polypropylene Bag Filter, F7 Grade, 13 MERV Rating, 592 x 287 x 350mm - 8279724

Media Material = Polypropylene
Header Size = 20mm
Nominal Width = 12in

For reference when consulting the datasheet: ; 827-9695 827-9695 = EC7-2415/8 ; 827-9709 827-9709 = EC7-2420/8 ; 827-9706 827-9706 = EC7-2424/8 ; 827-9724 827-9724 = EC7-1215/4 ; 827-9728 827-9728 = EC7-1220/4 ; 827-9759 827-9759 = EC7-2015 ; 827-9756 827-9756 = EC7-2020 ; 827-9774 827-9774 = EC7-2024. RS Ecoflow80 Fine Efficiency Rated Bag Filters. The RS Ecoflow range of bag filters are widely used in applications where low cost fine filtration is required. Ecoflow bag filters are manufactured by mounting the 100% polypropylene synthetic electrostatically charged media into a galvanised steel header frame. Polypropylene media is hydrophobic which ensures great performance in damp atmospheres Triple filtration layered Totally non-toxic and non-irritant Electrostatically charged The frame has a rolled safety edge which prevents damage to the media and is safe to install Extra build-in pre-filter layer provides extended filter life Ultrasonically welded seams provide leak free pockets Available in most sizes and pocket configurations Average Efficiency (measured on electrostatically charged media) at 0.4 micron* = 80% Minimum velocity required: 1.2m/s Rating to ASHRAE 52.2 Test Standard = Merv 13
